Agitator(AGITATOR AND PUMP SYSTEM)
Selection Of Agitator （agitator and pump system）
According to the process requirements,the accurate selection of agitator can achieve the best use effect under the lowest energy consumption. （AGITATOR AND PUMP SYSTEM）
Factors affecting agitator selection:
- Size and shape of agitator chest
- Purpose of mixing (storage or mixing)
- Dwell time
- Medium temperature
- Concentration of medium

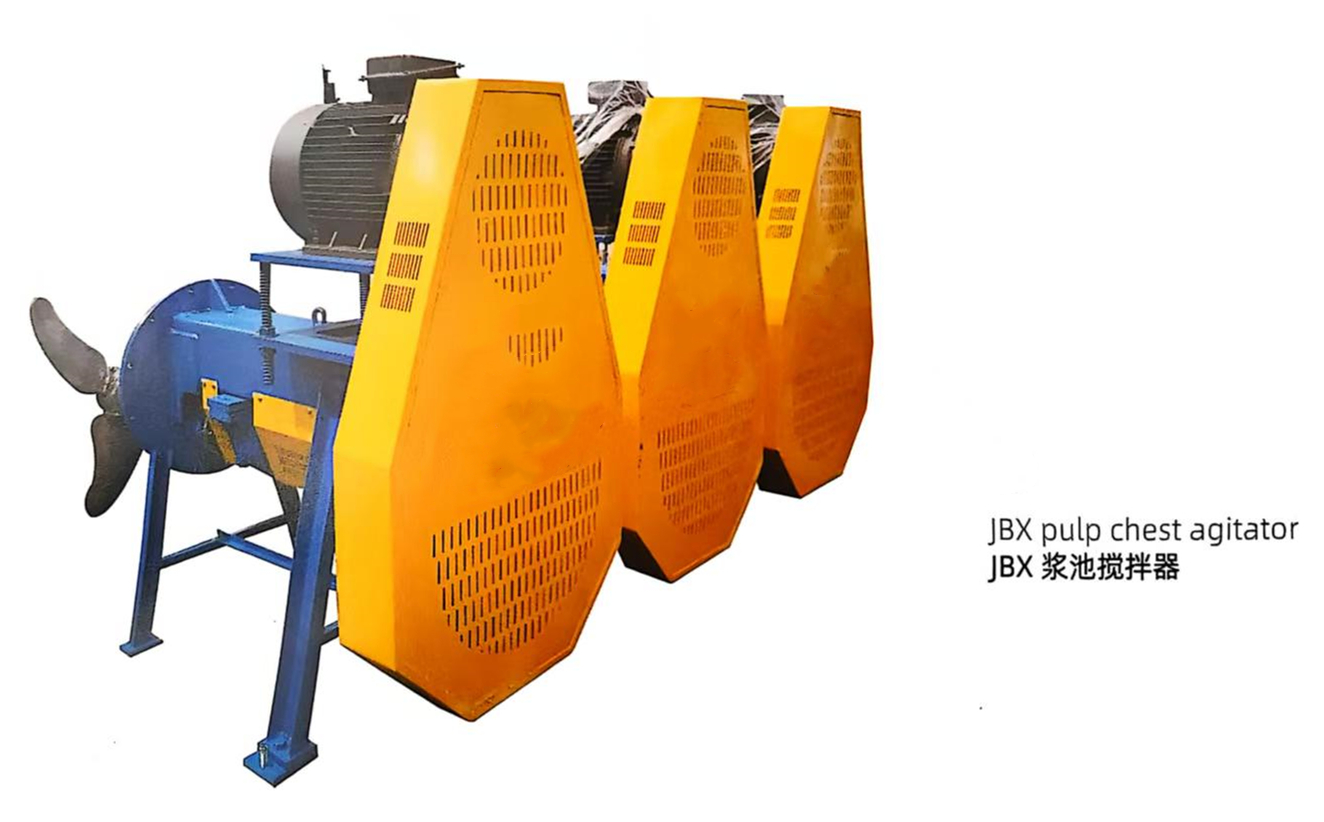

JBX Pulp chest Agitator/JBX
New low energy consumption and high efficiency agitator.
t is suitable for various forms of pulping with a concentration of less than 6%in the chest or storage tower.

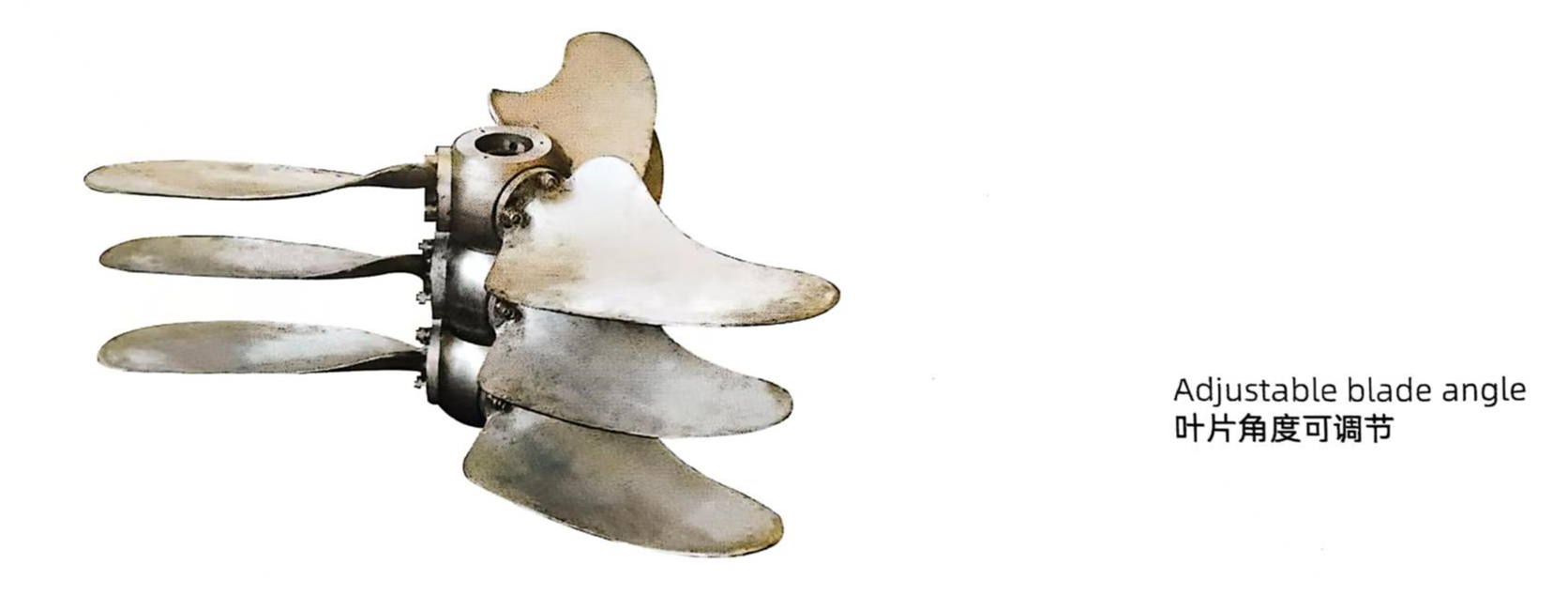

All parts in contact with the medium are made of stainless steel; the blades are precision cast stainless steel.- The blade design is advanced and the angle can be adjusted to meet the needs of different working conditions.
- Anti-loosening gasket prevents bolts from loosening ①.
- The agitator is directly fixed on the wall of the agitator chest,no foundation is required.
- The pulp is evenly mixed and the unit energy consumption is low.
- The deflector design not only protects the main shaft,but also improves the mixing efficiency.
.The shaft sleeve is used on the outside of the main shaft to prevent the main shaft from contacting the pulp and avoid the main shaft from wearing.
- The belt drive is simple and reliable;the pulley is fixed by a tension sleeve,which is convenient for installation and disassembly.

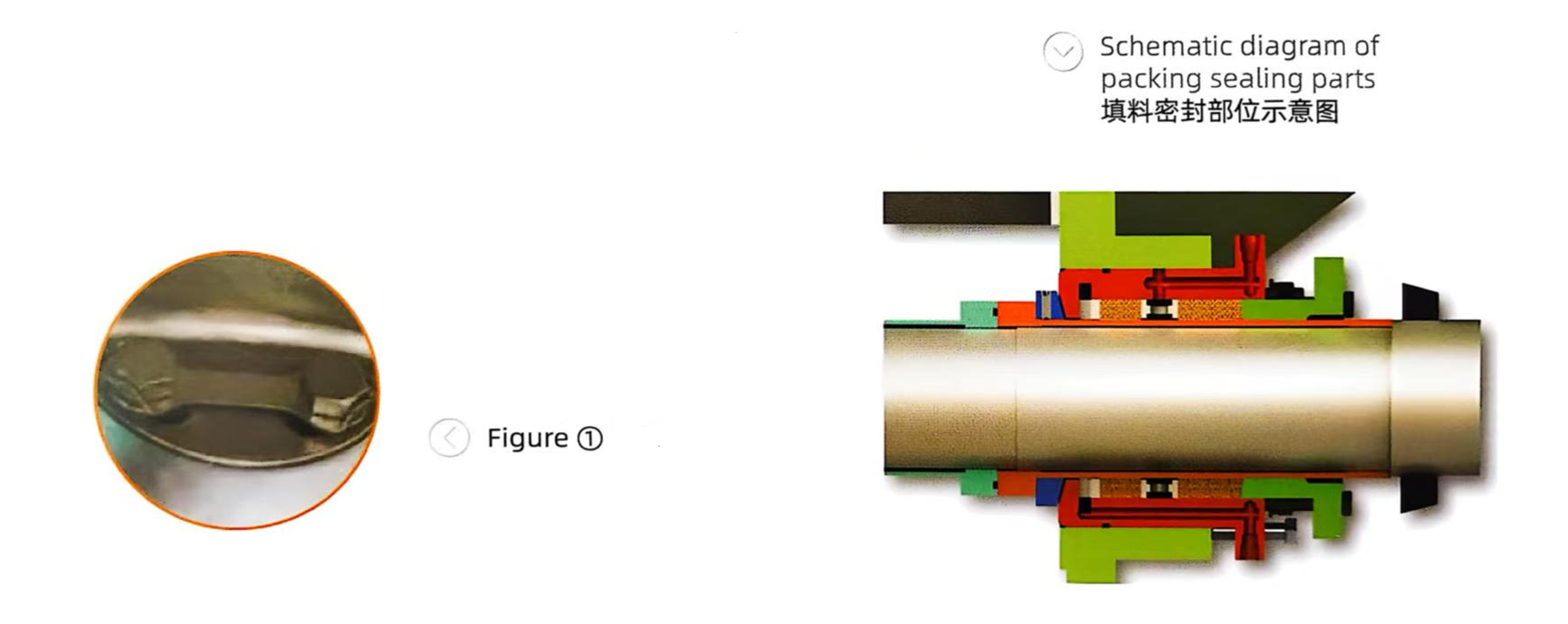

- The seal of the agitator adopts packing seal,and there is a wear-resistant shaft sleeve at the contact between the packing box and the packing.
- Increased specifications of the main shaft and bearings make the mixer more stable.
- The bearing and spindle seal are placed outside the chest,and the filler can be replaced without putting the pulp. （AGITATOR AND PUMP SYSTEM）

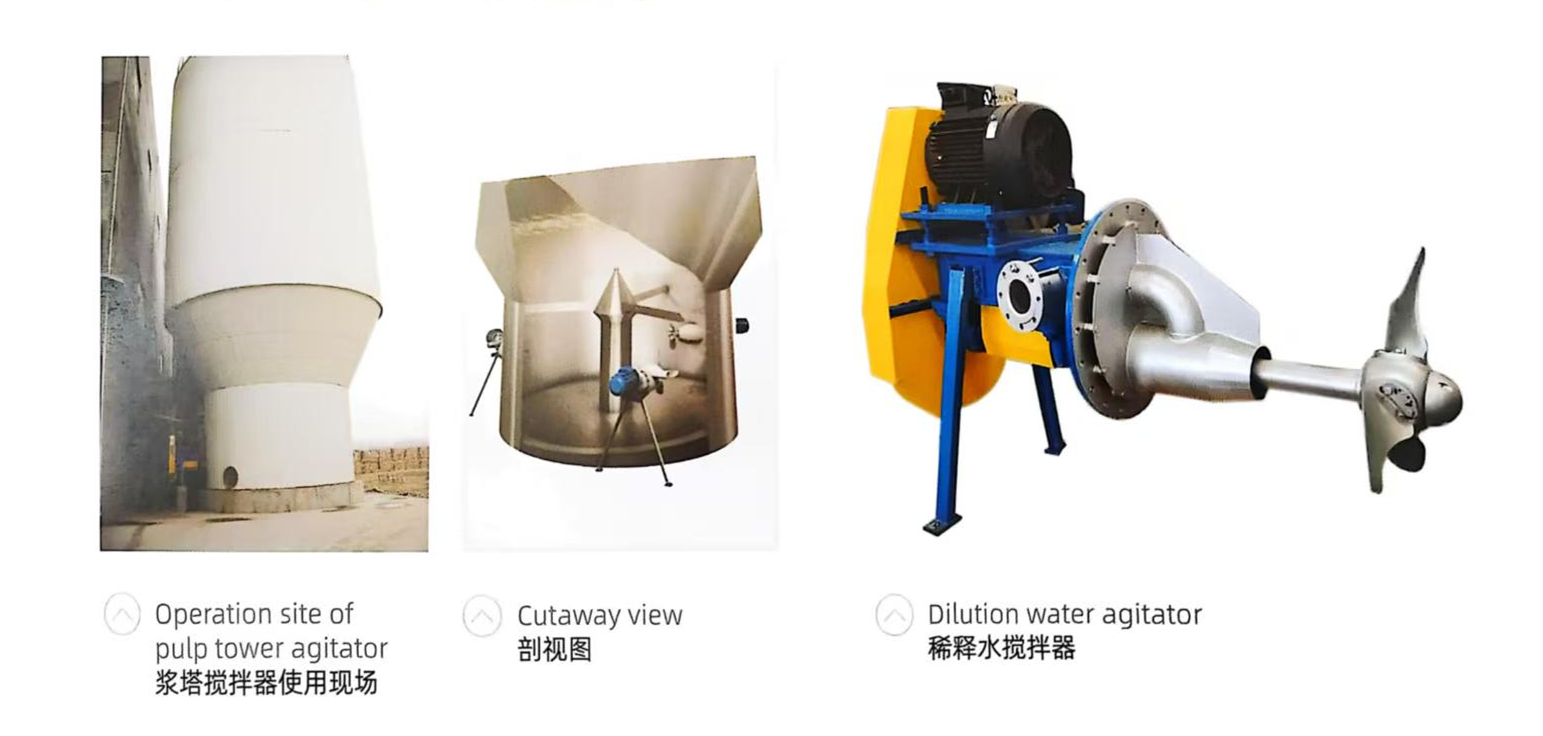

PULP TOWER AGITATOR
Medium and high concentration pulp tower agitator
Main Purpose
Used for mixing the bottom pulp of medium and high consistency pulp tower.
Features
- Trilobal structure,adjustable angle.
- With dilution water cone sleeve,used to add dilution water tothe mixing area,convenient for the delivery of the pulp pump.

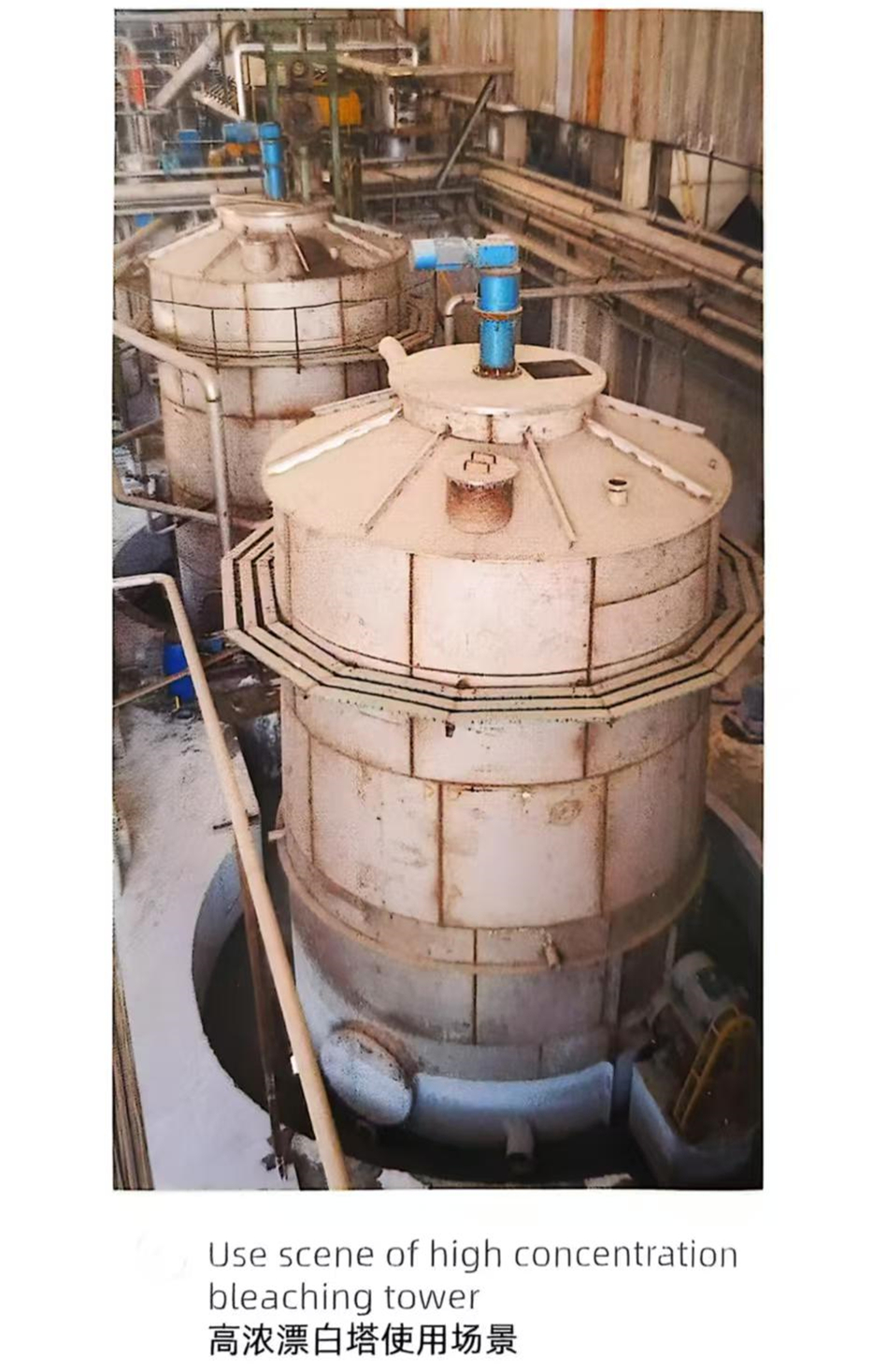

- The dilution area at the bottom of the high concentrationbleaching tower realizes thefunctions of high concentration bleaching and low concentration conveying,making the bleaching process simple.
- Simple and reliable structure,convenient maintenance.
Pulp Pump （agitator and pump system）
It is widely used in pulping and paper making(pulping,white water,flow,paper machine),sugar starch,chemical raw materials,industrial sewage,environmental protection engineering,municipal road engineering and other industries, and used for the transmission of corresponding media.(AGITATOR AND PUMP SYSTEM)

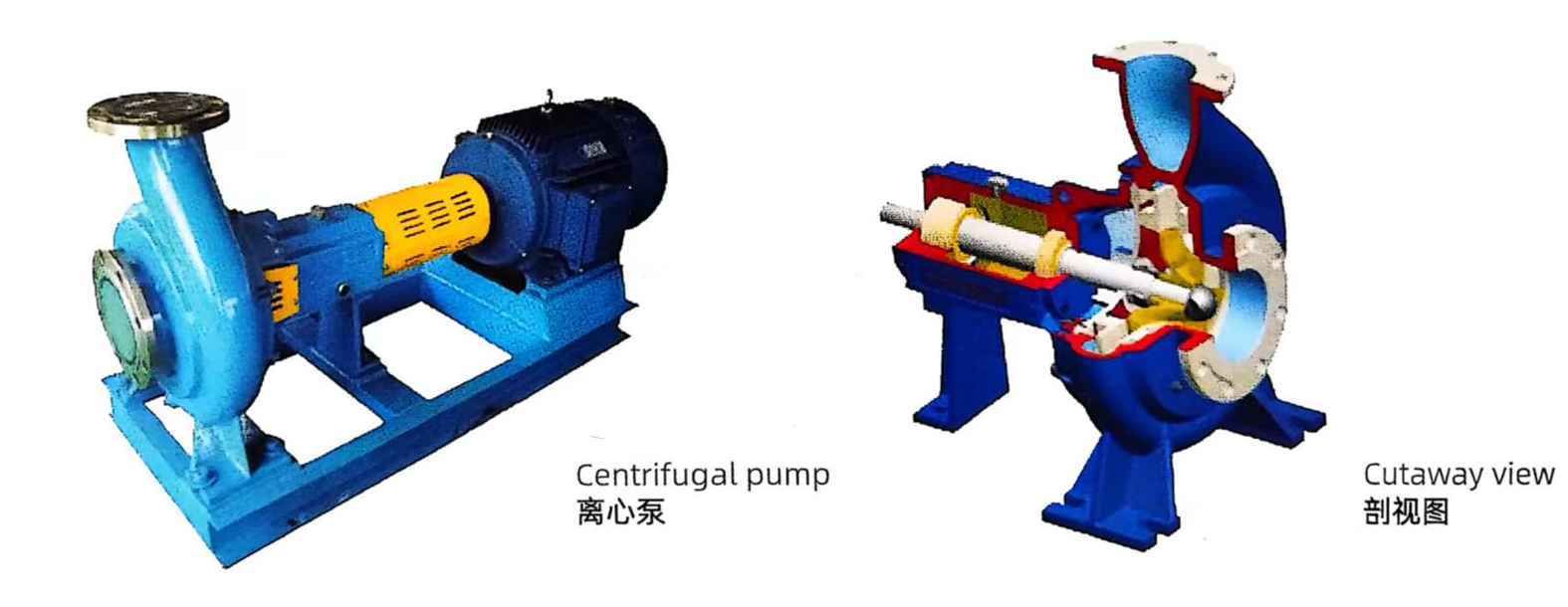

Centrifugal pump
Main Purpose
It is widely used in the transportation of pulp,white water and liquid materials containing impurities and particles with a concentration of less than 6%.
Features
- A variety of impeller structures,suitable for different operating conditions.
- Cantilever design,easy maintenance.
- Equipped with wear-resistant liner,which improves the service life and efficiency of the pump.

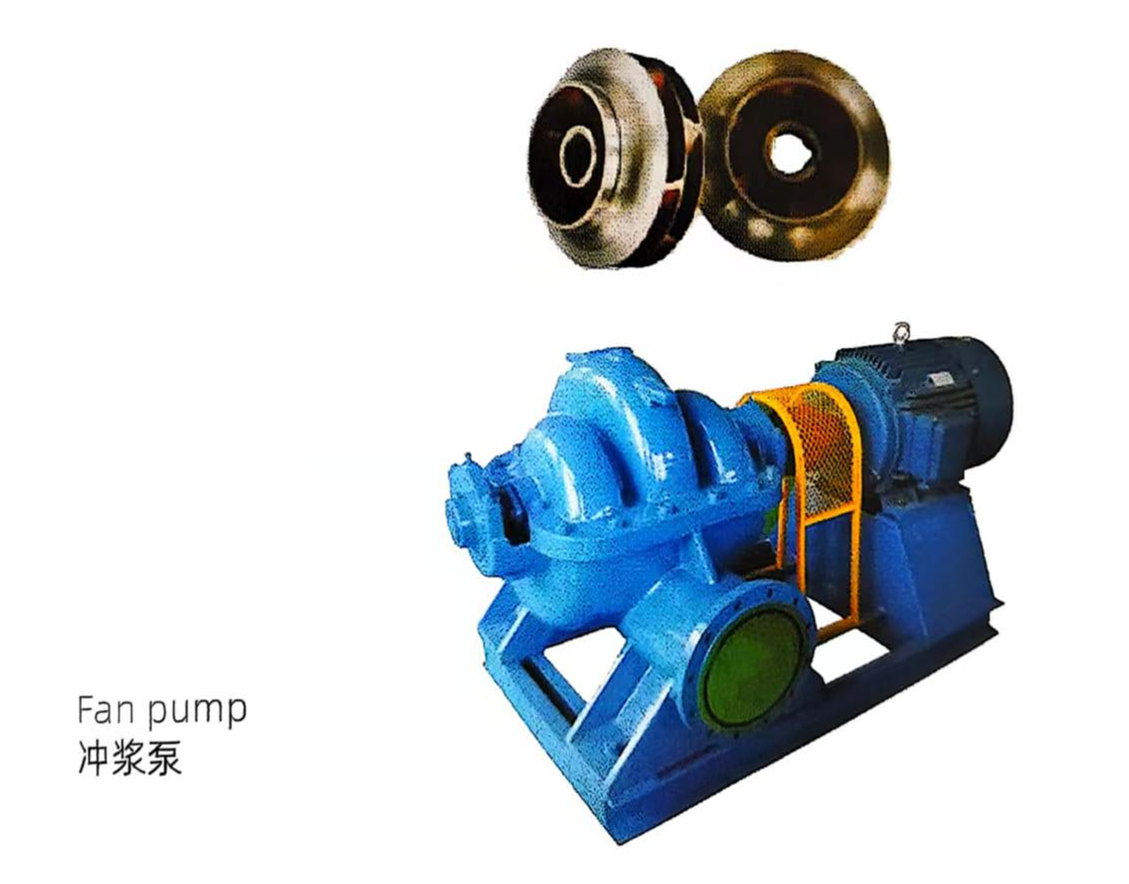

Fan Pump（agitator and pump system）
Main Purpose
It is widely used in the transportation of pulp,clean water,white water,agricultural water and various industrial sewage with a concentration of less than 2%.
Features
- Double-zone blades adopt staggered arrangement design structure,low pulse.
- The shell adopts a mid-open design,which is convenient for maintenance.
- Volute design,high efficiency.
- Non-cantilever design,good stability,can be used for large flow liquid transportation.

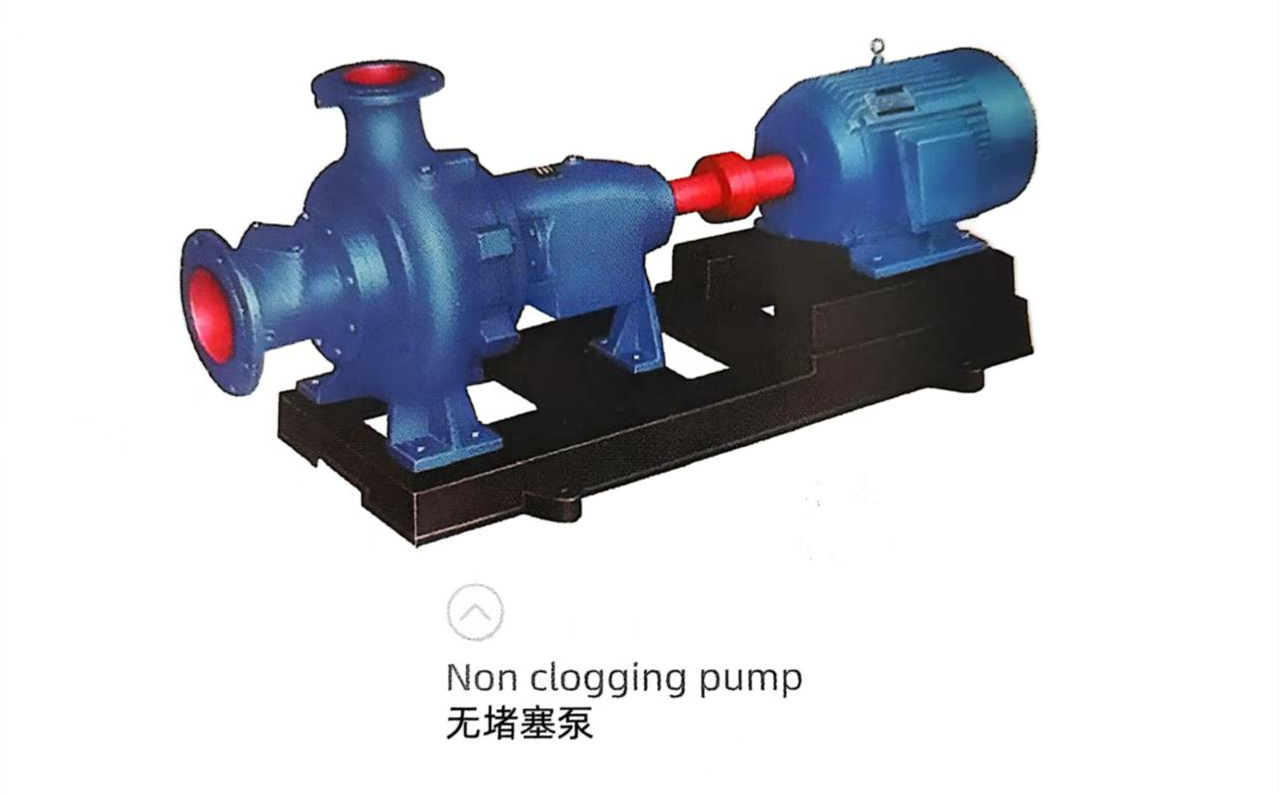

Non-Clogging Pump(AGITATOR AND PUMP SYSTEM)
Main Purpose
It is used for the transportation of pulp,sludge and other liquid materials containing larger size impurities.
Features
- Open impeller structure to prevent clogging.
- Cantilever design,easy maintenance.
- Equipped with wear-resistant liner,which improvesservice life and efficiency of the pump.
Fresh Water Pump,Hot Water Pump
Main Purpose
The conveying medium is fresh water,which is suitable for industrial and
urban water supply and drainage,agricultural irrigation and drainage,etc.
Features
- Closed impeller structure,high efficiency and low noise
- Cantilever design,easy maintenance (AGITATOR AND PUMP SYSTEM)
