Drying Cylinder/drum Dryer/can dryer
Specializing in high-efficiency steel drying cylinder and high-speed paper rolls, our production line delivers 500 sets/year compliant with GB, ASME, and PED standards, ensuring energy-saving performance and safety across industrial applications.

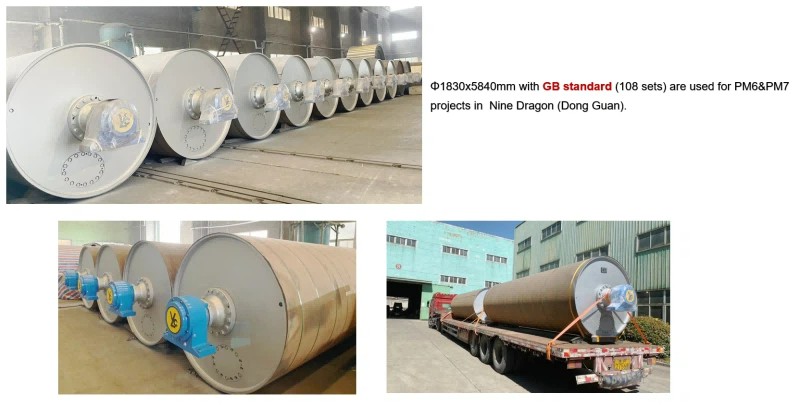

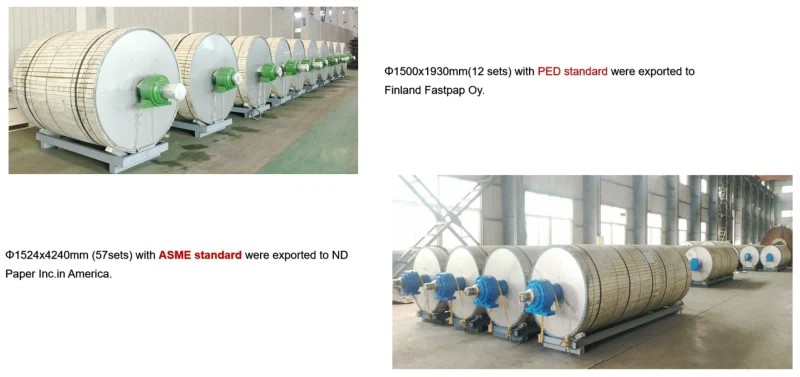

Steel/Casting Drying Cylinder
Capacity: 500 sets/Year within the speification Dia 1830mm,face length 12000mm;
Standard： GB(CSEI)﹑ASME﹑PED;
Advantage:High efficiency, Energy-saving﹑Safety.

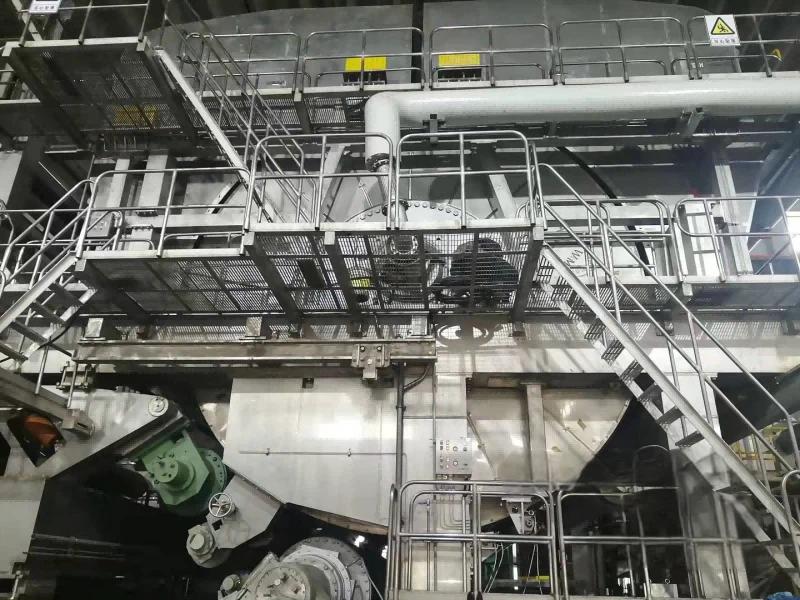

Steel/casting Yankee Dryer
Design and manufacture Steel Yankee dryers (ø3000-ø7500mm,face length 2400-12000mm, speed within 2200m/min) according to CSEI,ASME,PED standard.
Yankee Dryer Specification: 12FT-22FT(Largest in Asia,up to 190T–22 FT)
VAC Rolls

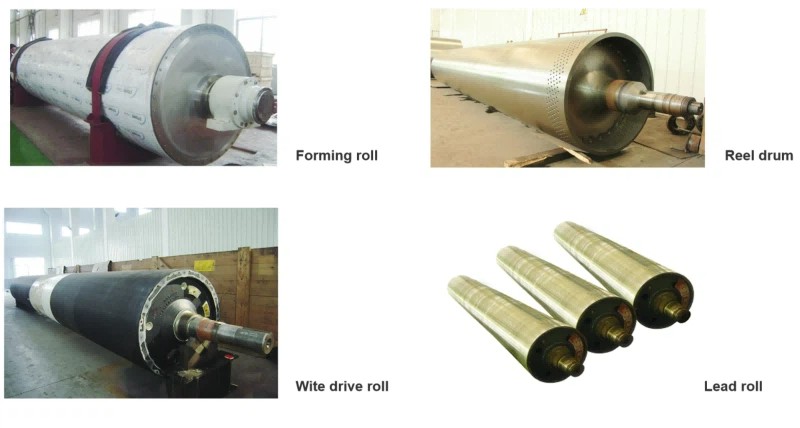

High-Speed Paper Rolls

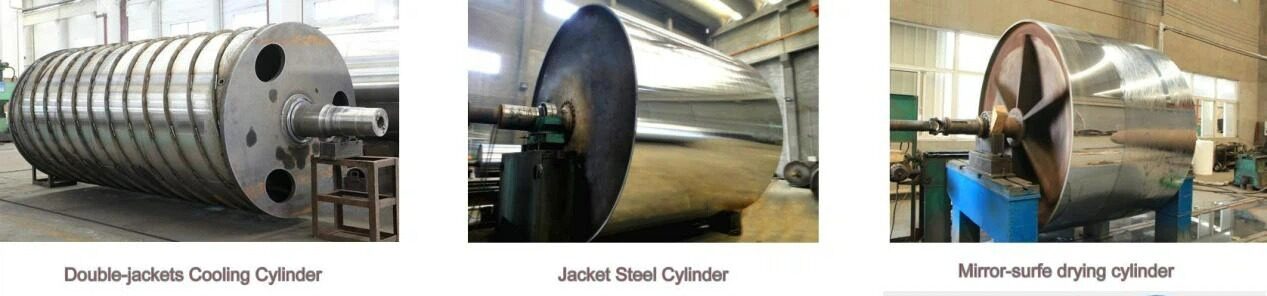

Professional manufacture in MG cylinder, Double-jakets cooling cylinder, High-speed paper rolls and parts of paper machinery, Pressure Vessel.
Equipment List

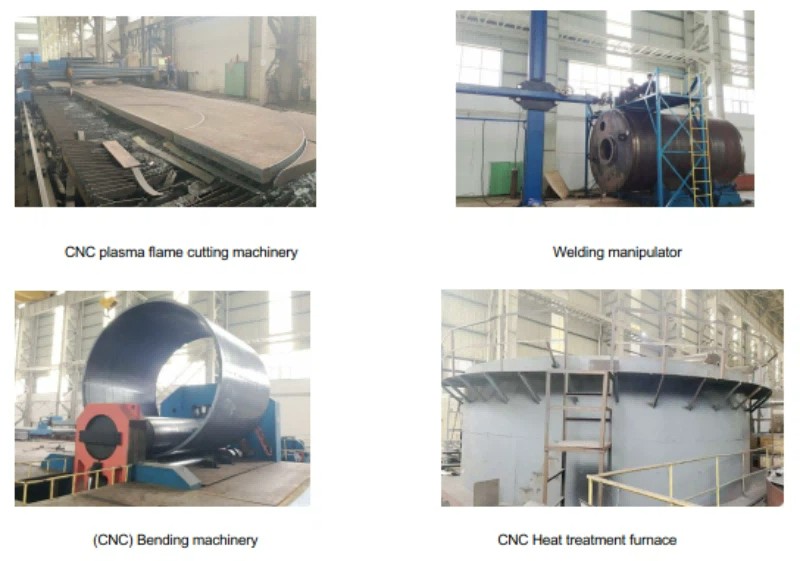

Welding Equipment
Description | Specification | Qty |
Automatic Submerged Arc Welder | MZ-1000A, MZ-1250A | 5 sets |
DC Inverter Welder | ZX7-400A | 30 sets |
CO2/MAG Welder | FKRS00 | 18 sets |
Argon Arc Welder | TIG400S | 5 sets |
CNC Plasma Flame Cutting Machine | HCG-5016HD, GS-6000II | 2 sets |
Welding Manipulator | LH-S | 5 sets |
CNC Bending Machinery | W51TK-160×4100 (CNC), W11-SS-X3100, W11-SS-X3500 | 3 sets (Max thickness: 100mm; Width: 4100mm) |
CNC Heat Treatment Furnace | Φ8000×6500, Φ4800×4500, Φ3000×6000 | 3 sets (Max dia.: Φ8000mm; Height: 6500mm) |
Double-Turning Milling-Edge Machine | XBJ-9M | 1 set |

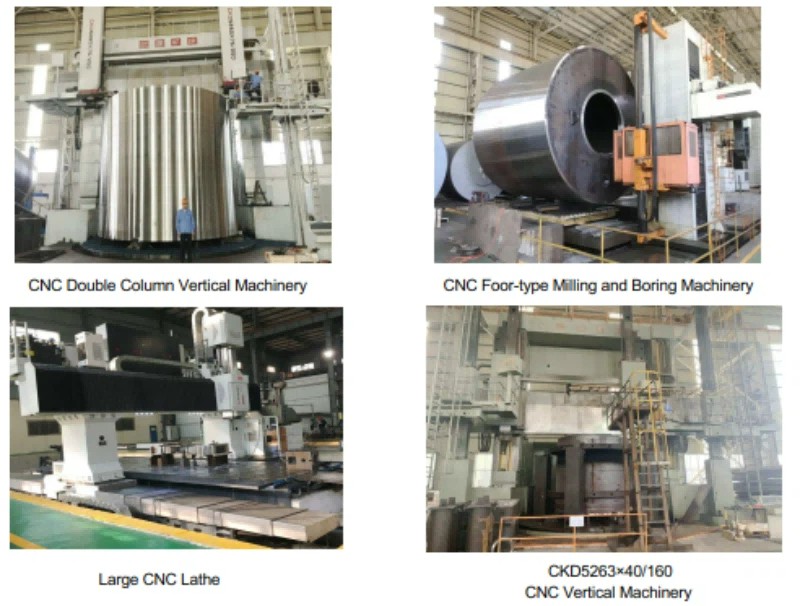

Machining Equipment
Description | Specification | Qty |
Large Lathe | CW61240×6000, CW61200×12000, CW61180×5000, CW61160×12000, CW61160×7000, CW61160×5000, CW61125×10000, CW61125×5000 | 18 sets (Max process length: 12m; Max dia.: Φ2400mm) |
Large CNC Lathe | CK61200×12000, CK61100×9000, CKJ6180×3000 | 3 sets |
CNC Heavy-Duty Horizontal Lathe | CK61250×14000 (Load: 40T) | 1 set |
Large CNC Vertical Milling Lathe | DVTMB00x650200L-NC, CKS263x451/00, CKS263x501/00, DVTMT00x501/00 | 3 sets (Max process dia.: Φ8000mm; Height: 8500mm; Load: 200T) |
Large CNC Floor-Type Boring and Milling Lathe | TK6920A/120×50, TK6920/140×50 | 1 set (CNC 7-axis; Main shaft: Φ200; Load: 80T) |
Vertical Lathe | G51230 | 1 set |
Boring and Milling Lathe | TPX8113, TX82138-X8Y2.5 | 2 sets |
CNC Gantry Boring and Milling Lathe | GMC30100rna, X62420x800 | 2 sets |
Gantry Planning and Milling Lathe | BXM2020F-2 (2000×8000) | 1 set |
Standed, Horizontal Milling Lathe | X5042, X6042 | 6 sets |
12m Deep Hole Boring Lathe | SZ21400-12000 | 1 set |
Gantry Hydraulic Machinery | 800T, 100T | 1 set each |
Belt Sander | +2000×16000 | 1 set |
Large Cylindrical Grinding Lathe | Φ4000+8000, Φ3000+5000 | 3 sets |
Vertical Lathe, Small and Medium Drilling Lathe | Φ4000+10000 | 25 sets |
CNC Roll Grinder | MK84200×120 (Max outer diameter: Φ2000mm; Length: 12m; Load: 80T) | 1 set |
CNC Heavy-Duty Horizontal Boring Lathe | CKT61250×120×3St | 1 set |
CNC Deep Hole Group Drilling Machinery | SK2000-12M (Process dia.: 2m; Length: 12m) | 1 set |
Electroplating Equipment
Description | Specification | Qty |
Plating Bath | Φ3000×8000, Φ1000×12000, Φ2000×12000, Φ4000×4000, Φ2000×6000, Φ2000×2000, Φ1500×8000, Φ4000×4000 | 8 sets (Horizontal: 6 sets; Well type: 2 sets) |
Polishing Machine | Φ3000×9000, Φ3000×12000 | 5 sets (Mirror finish: 2 sets) |
Lifting Equipment and Paint Spray Booth
Description | Specification | Qty |
Sand-Blast Room | 13m×8m | 1 unit |
Paint Spray Booth | 12m×6m | 1 unit |
Crane | 5~250T | 30 sets (Max lift: 250T; Lift height: 18m) |
