Efficient online Cleaning System ( Online PF·Clean for Dryer Fabric )
remove the stickieson dryer fabric,keep the breathabilityof dryer fabric.
Function and Benefit
Main functions and advantages of PF·Clean dryer fabric cleaners:
● During the normal production of paper machine, the dirty dryer fabric can be cleaned clearly online;
No need to add chemicals, it’s environmentally friendly and pollution-free;

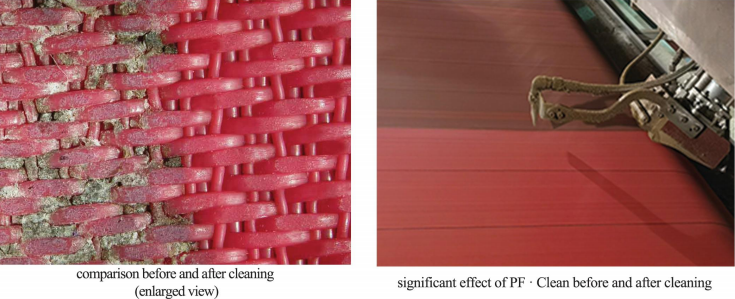

● Improve and maintain the air permeability of the dryer fabric and significantly improve the paper
drying effect:
● Eliminate paper breaks,grooves, indentations and holes caused by dirty dryer fabrics (during papermaking and rewinding paper defects such as grooves and indentations are easy to cause paperbreakage), effectively reducing rewinder breakage and improving production efficiency; ( Online PF·Clean for Dryer Fabric ) Improve the operation performance of paper machine, help to increase the speed of paper machine, and help to increase the life of dryer fabric;
● PF·Clean has high cleaning efficiency, stable and reliable operation.
Working Principle ( Online PF·Clean for Dryer Fabric )

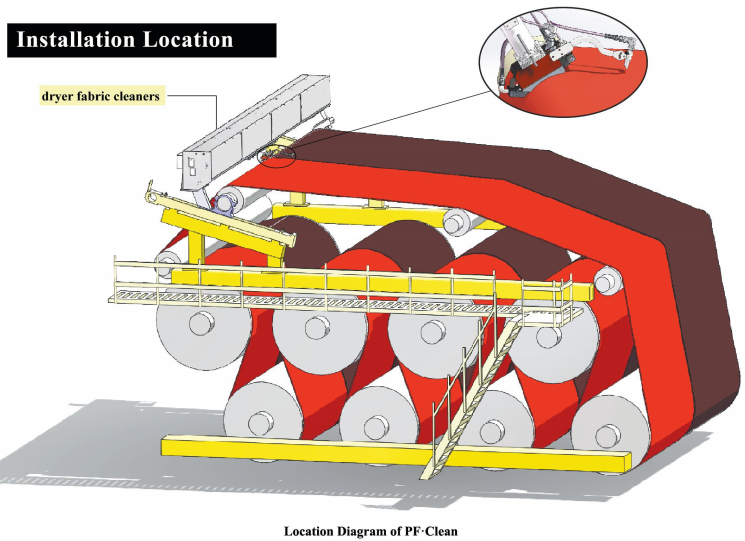

PF·Clean smart dryer fabric on line cleaning system is equipped with efficient cleaning head. The cleaning head islocated at the wrapped area between dryer fabric and guiding roller. And there maintains a ceratin gap between cleaninghead and dryer fabric.

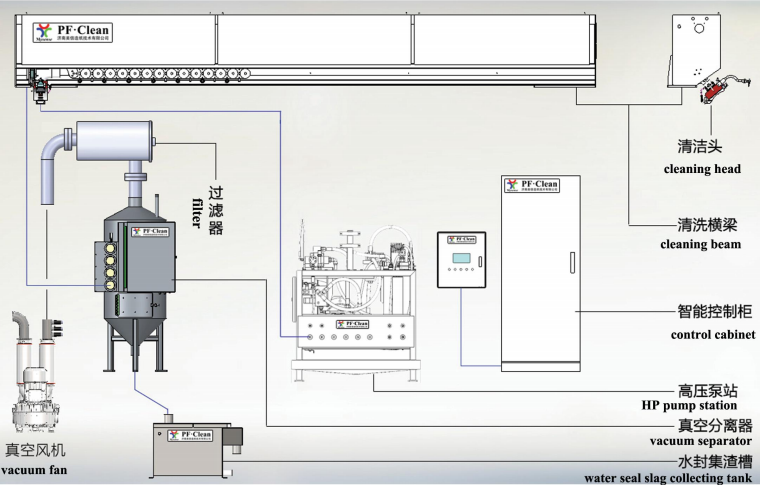

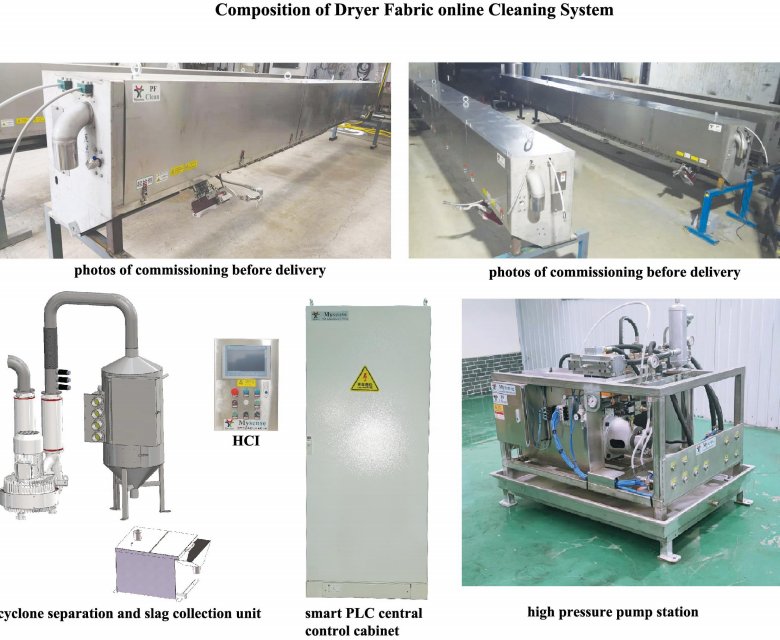

System Components ( Online PF·Clean for Dryer Fabric )

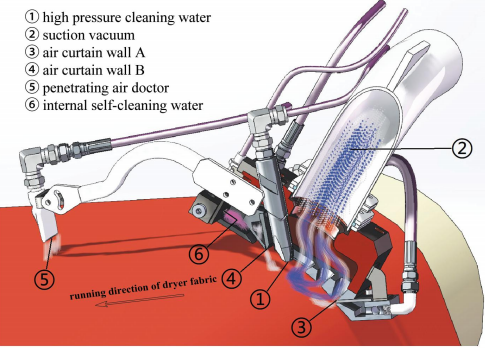

The cleaning head is equipped with high-pressure water nozzles to ensure angle jet on the fabric surfaceto loosen the rubber dirt off the fabric surface. And the front and back air doctor jet air to help furtherly blowing up the dirtand. then discharge the dirt out of the paper machine under the action of the vacuum suction slag removal system. After thatthe external air doctor completely removed the residual moisture.
(The cleaning head is equipped with high-pressure water nozzles to ensure angle jet on the fabric surfaceto loosen the rubber dirt off the fabric surface. And the front and back air doctor jet air to help furtherly blowing up the dirtand. then discharge the dirt out of the paper machine under the action of the vacuum suction slag removal system.After thatthe external air doctor completely removed the residual moisture. )
