Fixed Crown Soft Calender(CALENDER ROLL)
BANNOR soft calender team has more than 30 years of production and manufacturing experience,MY-series Fixed Crown Soft Calender has more than 1000 sets of use in China and other countries.All kinds of paper making enterprises,familiar with the calendering application of various types of paper,finishing requirements are unanimously recognized and praised by customers.(CALENDER ROLL)

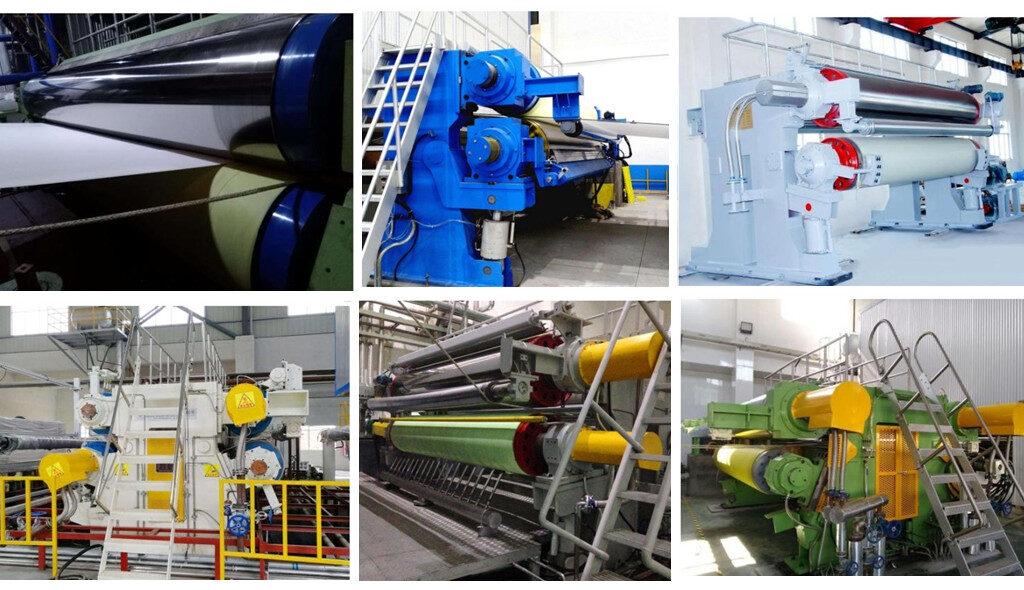

SOFT Calender(CALENDER ROLL)

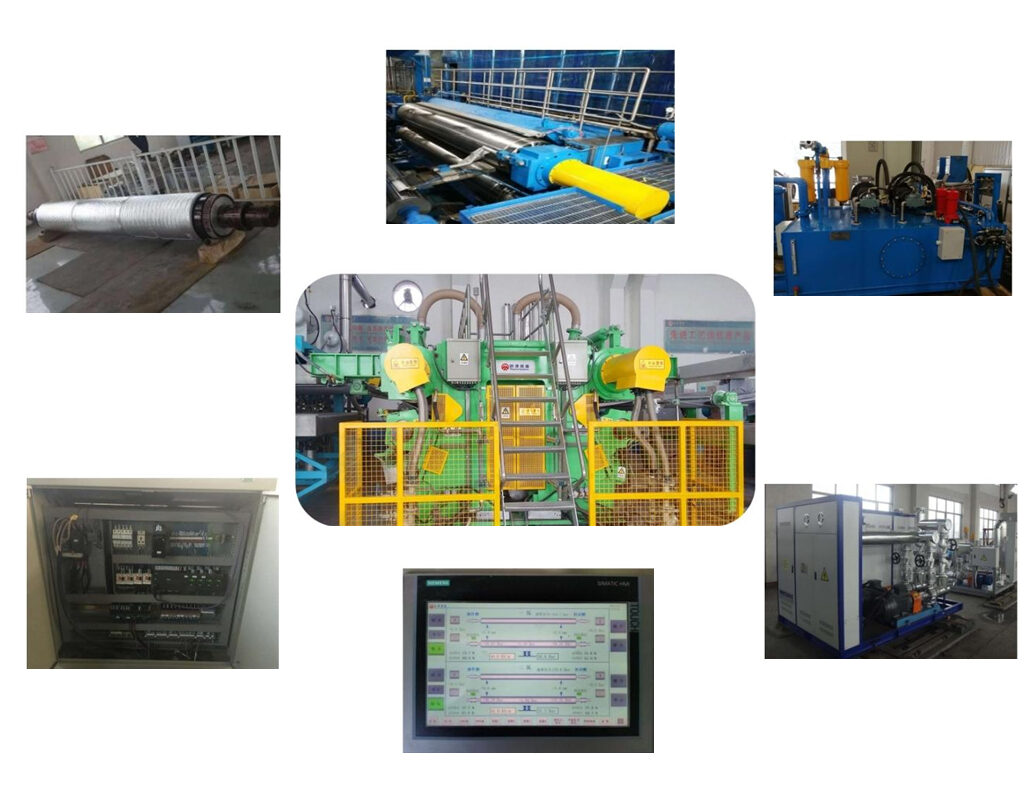

Soft Calender Features and Benefits
Linear Load: 380 N/mm
Thermo Roll Surface Temperature: 260°C
Paper width: 6.6m
Operating speed: 1500 m/min
Edge Cooling/Edge Trimming for rolls surface protection
Advanced PLC/PC based control and monitoring system
Soft Rolls for even CD-Profile of the web
FlexiHeat Rolls TMfor high temperature and excellent cross machine temperature profile
The design and manufacture of rolls are strictly in accordance with European standards.The key units are imported from Europe to ensure the superior performance of rolls
More than 30 years of experience for Calander design,manufacture
and application.

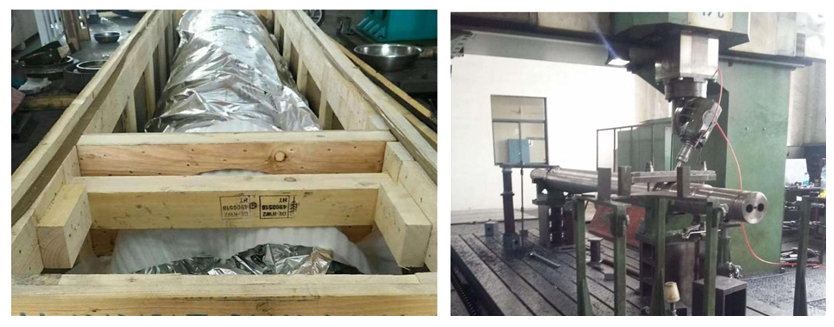

Swimming Roll
The shell of swimming roll is imported from Germany, the material is high-quality gray cast iron or chilled cast iron to ensure its perfect elastic modulus and stability.The roll covering for soft calender is provided by the world’s top covering suppliers(such as Voith).(CALENDER ROLL)
Swimming roll core material for high quality forgings, British design and manufacturing standards, CNC machining center processing in China.

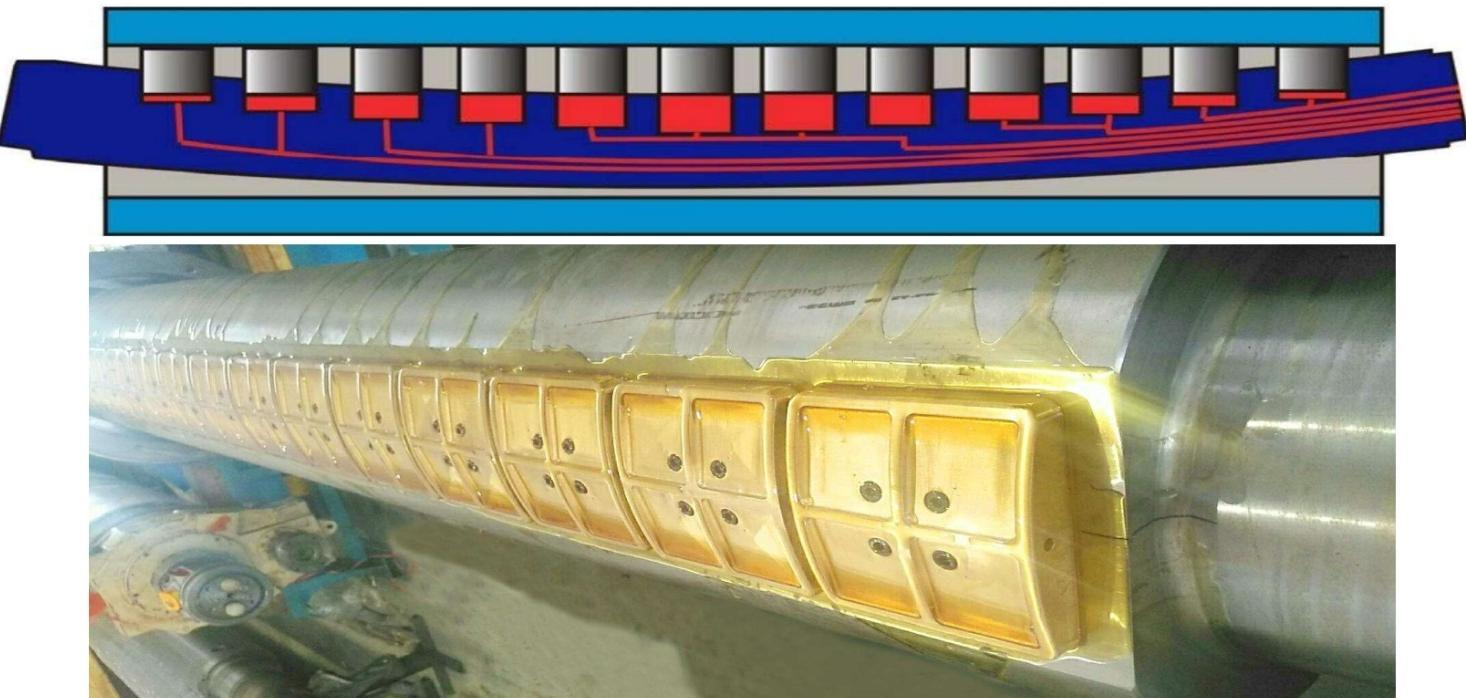

Multi Zone Piston Roll
The roll shell and core are made of high quality alloy forgings.The piston is made of high wear-resistant copper alloy.The number of zones can be designed according to the paper type or customer requirements,and can be designed with single piston adjustable.
The roll covering for soft calender is provided by theworld’s top covering suppliers (such as Voith).

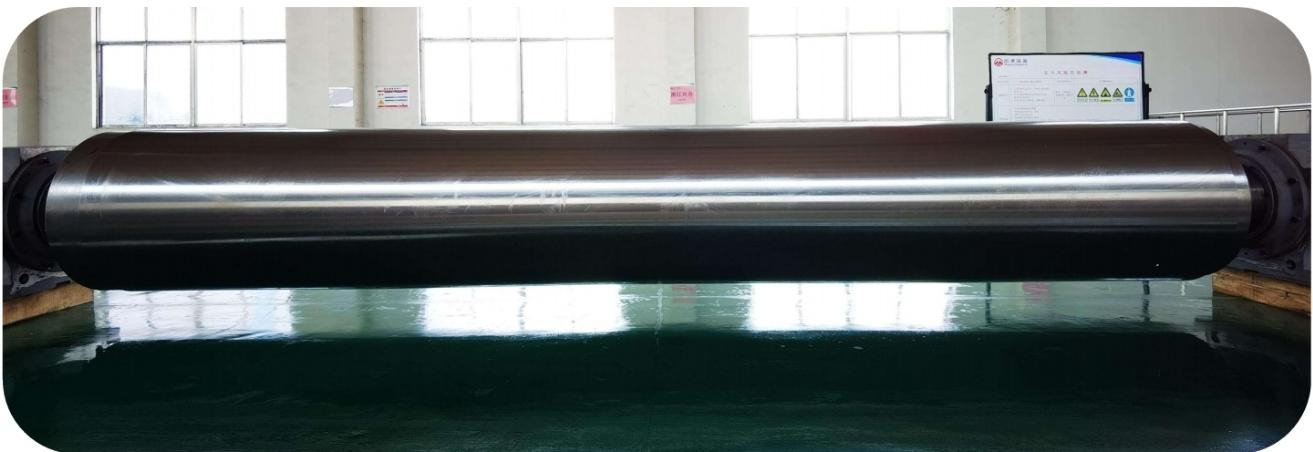

Thermo Roll
Alloy forgings
The surface hardness is HSD82+1 degree(HV700±20),Uniformity of hardness
Uniform heating,uniform deformation,heating temperature difference
The surface roughness reaches Ra0.015µm (CALENDER ROLL)

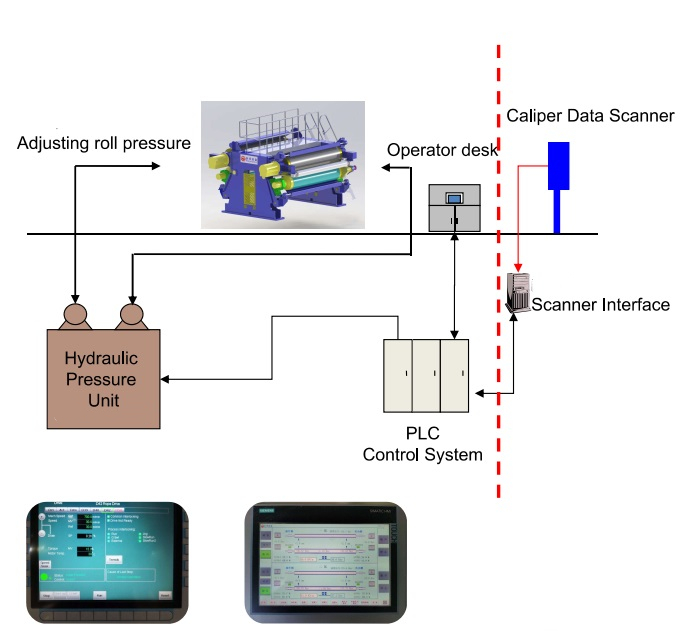

Calender Control System
PLC ：
- Open-Close
- Loading
- Roll Pressure
- Roll Heating
- Doctors
- Operation Interface
- Interlocks,Alarms
- Drives interface
- Operation parameters
- Options
