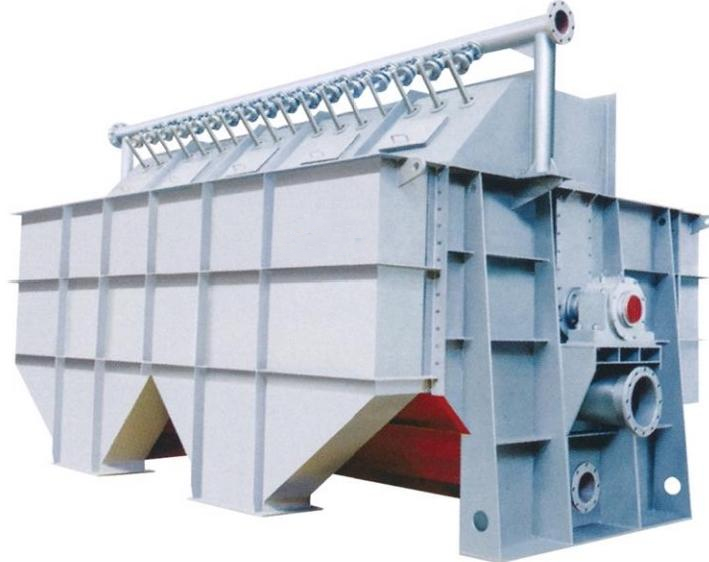

roll-GRACITYDISC THICKENER
(ROLL)（GRACITYDISC THICKENER）Application
（GRACITYDISC THICKENER）Used for washing and concentration of low concentration oar materials in pulp and paper industry.
The working principle is to rely on the difference between the outer pulp level of the plate filter and the water level of the plate for gravity dehydration;The paddle material with a concentration of 0.8-1.2%is adsorbed on the fan plate after entering the paddle groove,and the white water in the plate flows from the guide channel to both ends of the hollow shaft and is discharged out of the wall plate.(GRACITYDISC THICKENER)
The disk slurry is scour by high pressure water,when the level of the paddle material is higher than the control valve gate,overflow to the slurry tank discharge,the slurry concentration is about 3~6%.The pulp concentration and production capacity can be adjusted by the speed of the spindle.
Construction features
High production efficiency,small footprint.
(ROLL)The fan plate is welded by stainless steel,which has good corrosion resistance. Due to the fan structure of the dewatering tray,the filter area is large,and a lot of filter can be carried out during operation The released white water concentration is lower than that of the circular net concentrator.(GRACITYDISC THICKENER)

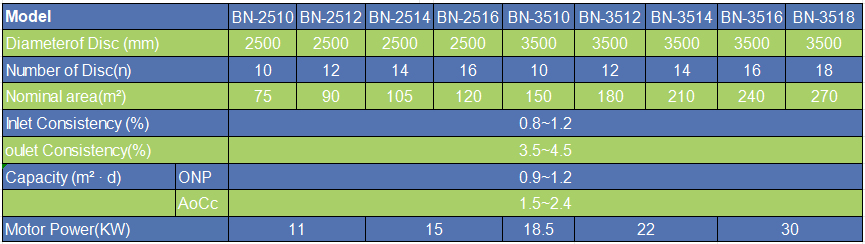

Main technical data

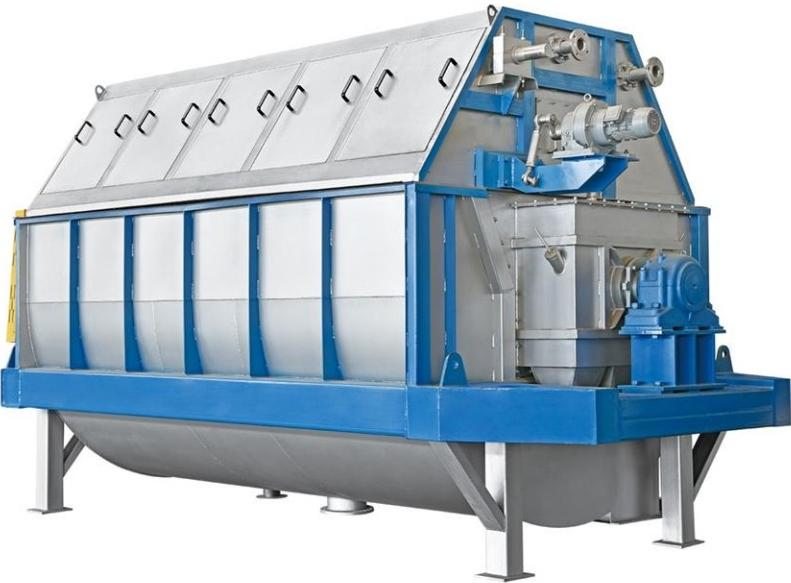

(ROLL) MULTI-DISC FILTER
(ROLL)Application
It uses the vacuum formed by the suction of the water leg to realize the separation of solid and liquid with the help of filter media,and distributes filtrate of different quality through the area of the distribution valve.(roll)
It is a widely used equipment for white water recovery and slurry concentration at present.When used for white water treatment,water resource recycling and fiber recycling can be realized;Used for slurry concentration,single machine high output,less fiber loss.The slurry concentration can reach 12-14%,and the equipment performance index reaches the leading level in China.(GRACITYDISC THICKENER)
Construction features
(ROLL)Filter plate plate has diversified structure,economical and applicable,high strength,convenient replacement,large effective filtration area and good filtration effect.
Equipment models and specifications are complete,according to different output requirements,the filtration area can be changed.(roll)
Adjustable distribution plate with special wear-resistant material,good sealing effect.
Main technical data

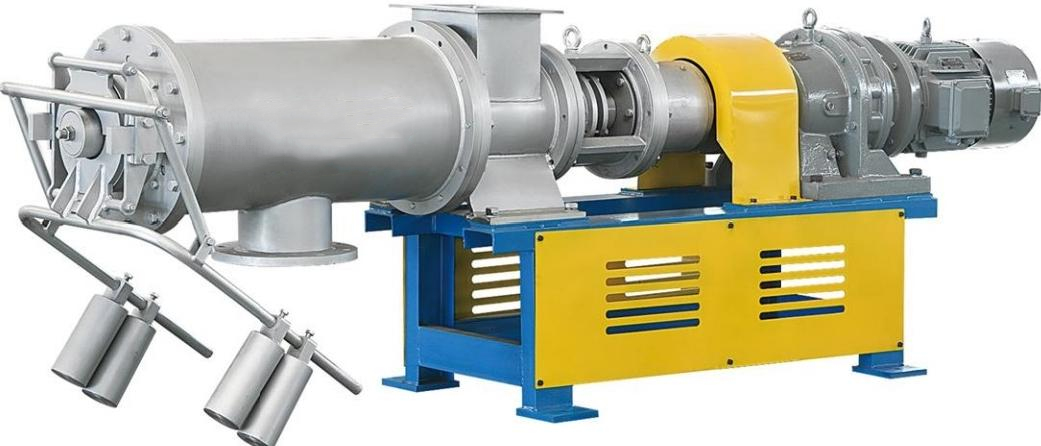

（roll)REJECTS THICKENER
Application
Used for dewatering the tailings of fine screen and low concentration slag remover in pulping system Enrichment.
Construction features
Small footprint
No one on duty
Low operating cost
Strong concentration adaptability(GRACITYDISC THICKENER)(roll)

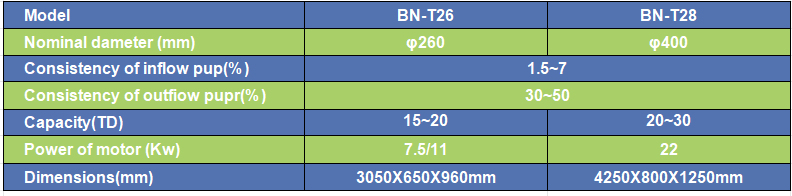

Main technical data
GRACITYDISC THICKENER
Application

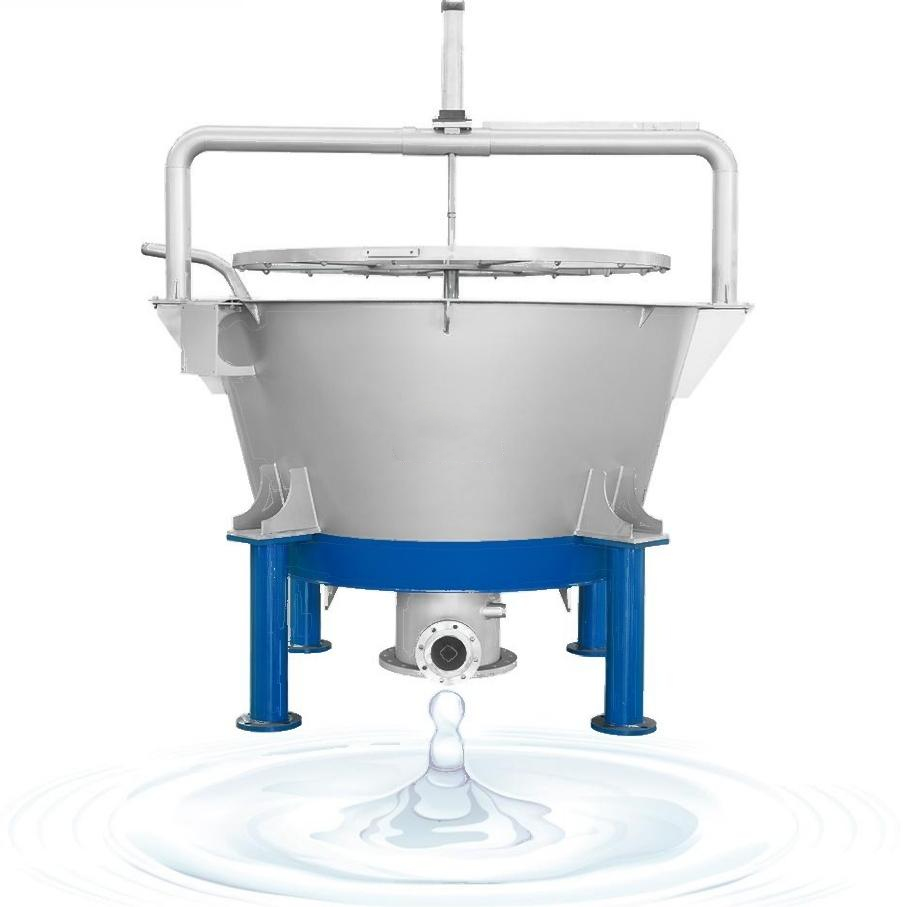

BN-white water filter recovery machine is mainly used for collecting and recycling all kinds of raw materials fiber contained in process white water.Process white water is rich in all kinds of raw materials, but the cost of recycling chemicals and fibers is too high,and the cost of water treatment is very high. BN-white water filter recovery machine does not need power supply,cone type filter from the upper support and free hanging,when the spray pipe from the pulp device spray white water to the filter,the filter began to rotate,and produce shaking,play the role of separating fibers. BN-white water filter recycling machine can also be used in food,beverage,wastewater treatment and other resource-intensive enterprises.(roll)

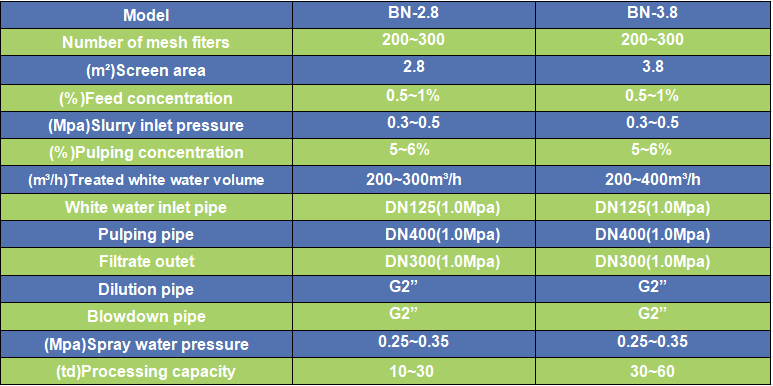

Main technical data
DISC HEAT DISPERSION SYSTEM
Application
The system is suitable for all kinds of pulp treatment with waste paper as the basic raw material.It can effectively disperse the impurities such as adhesive,grease,paraffin, plastic and ink particles in waste paper pulp,so as to improve the quality of paper and improve the performance of paper.

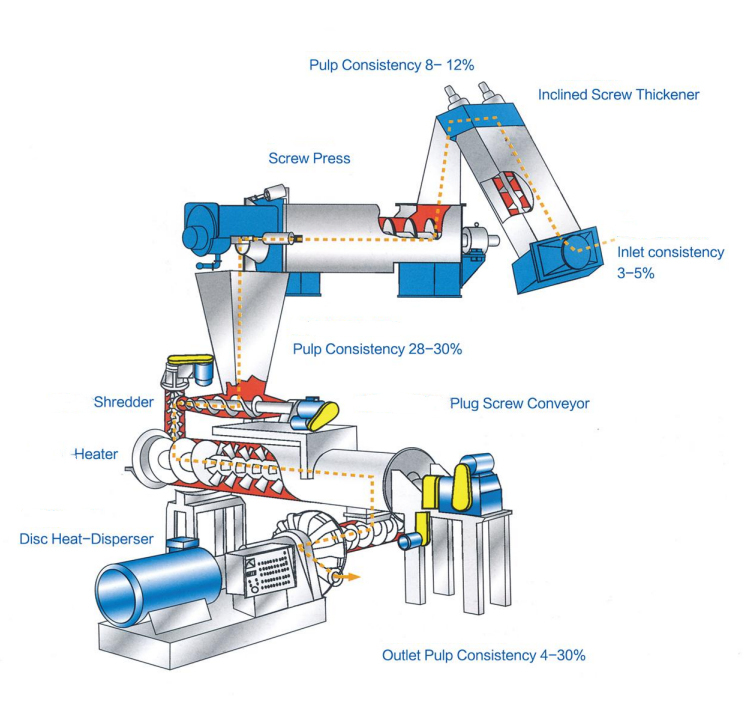

Disc heat dispersing system mainly includes:shredding machine,heater,feeding screw conveyor and disc heat dispersing machine. The concentration of the slurry is increased to about 30% by the concentrator,which is sent to the heat dispersion system.The plug screw conveyor is used to prevent steam overflow,the slurry is scattered by the shredding machine,and the slurry is heated by the heater,and then dispersed by the disc heat dispersion.(GRACITYDISC THICKENER)

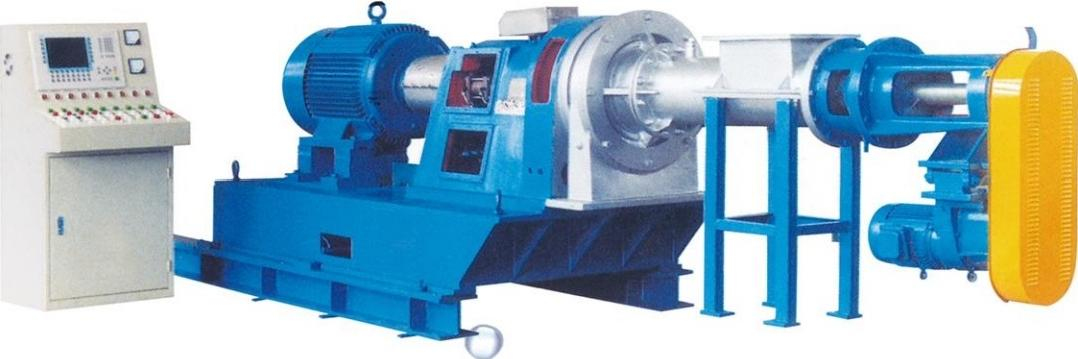

DISC HEAT DISPERSER
Application
Used for dispersing hot melt impurities such as adhesive,grease,paraffin,plastic,rubber or ink particles in waste paper (OCC/ON-P/OMG/MOW).(GRACITYDISC THICKENER)
Construction features
The gap between the moving disk and the static disk can be set arbitrarily within a certain range,which can realize the operation in the state of small gap,and is more conducive to stripping the ink attached to the fiber,dispersing dust spots,adhesive and paint particles. The tooth shape of the moving disc and the static disc can improve the process characteristics of the fiber and have a good moistening effect, which is conducive to the bleaching of the slurry. Forced feeding is beneficial to efficient heating and temperature control of the slurry,reducing the negative effect caused by long time heating.(roll)

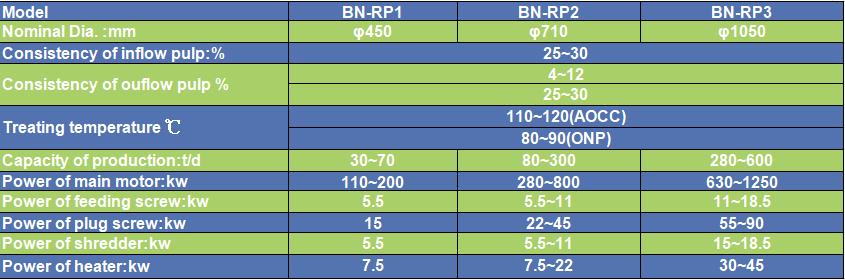

Main technical data
