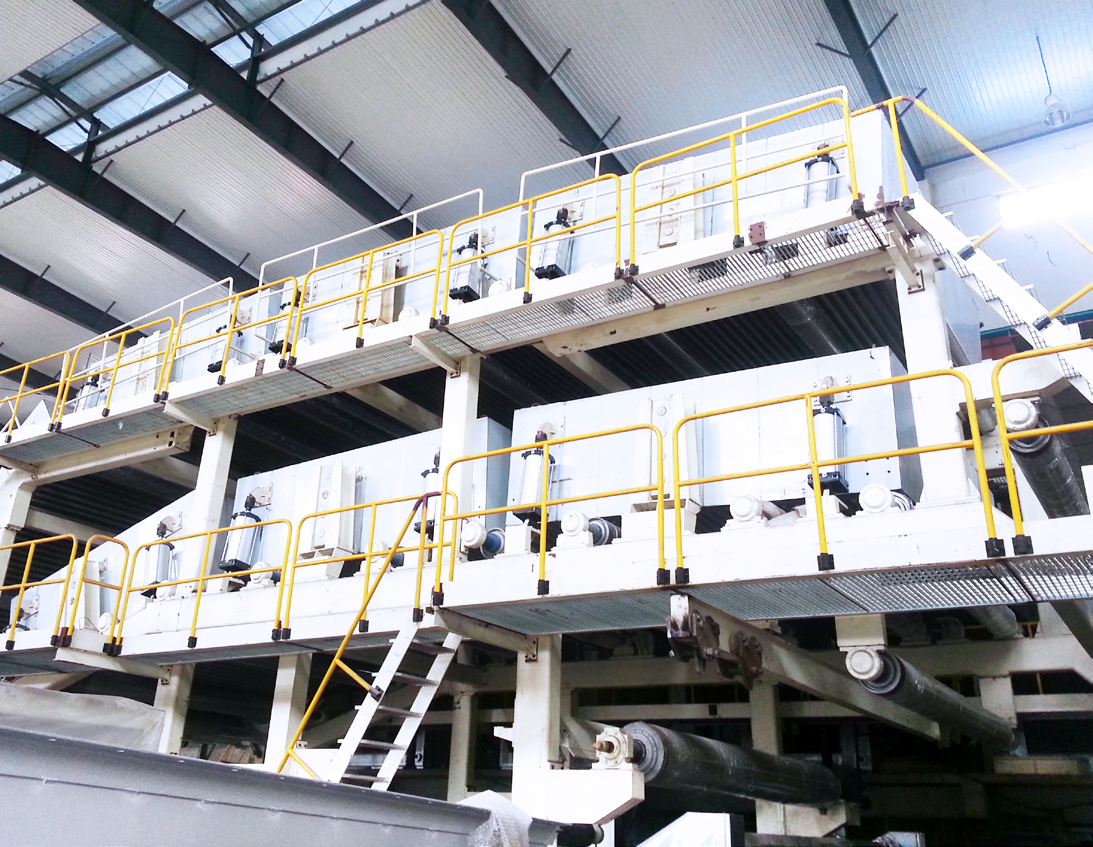

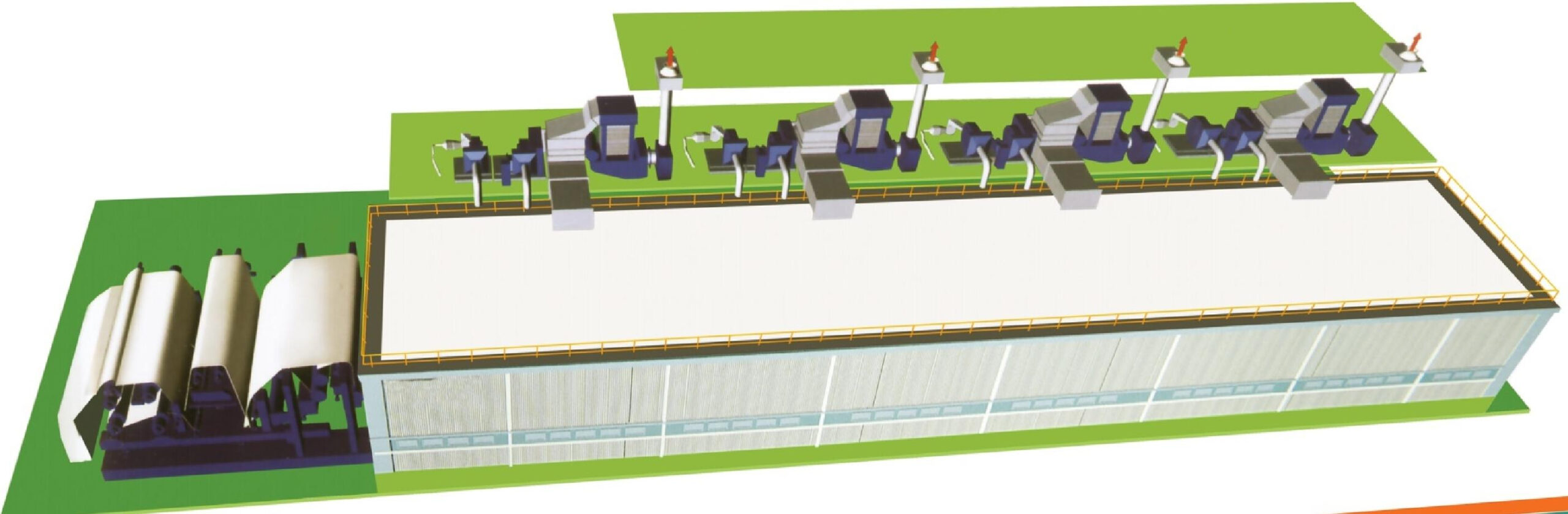

Closed Hood System

Due to the improvement of thermal insulation and sealing,dew point can reach 62-65℃,Then to save steam and electric energy
Heat recovery due to the use of new elliptic tube,more high thermal efficiency
Operation of intelligent control management system as the air Engineer
Dew point temperature 62-65℃
New type patent heat insulation,heat preservation sealing material
Appearance,the atmosphere,thick

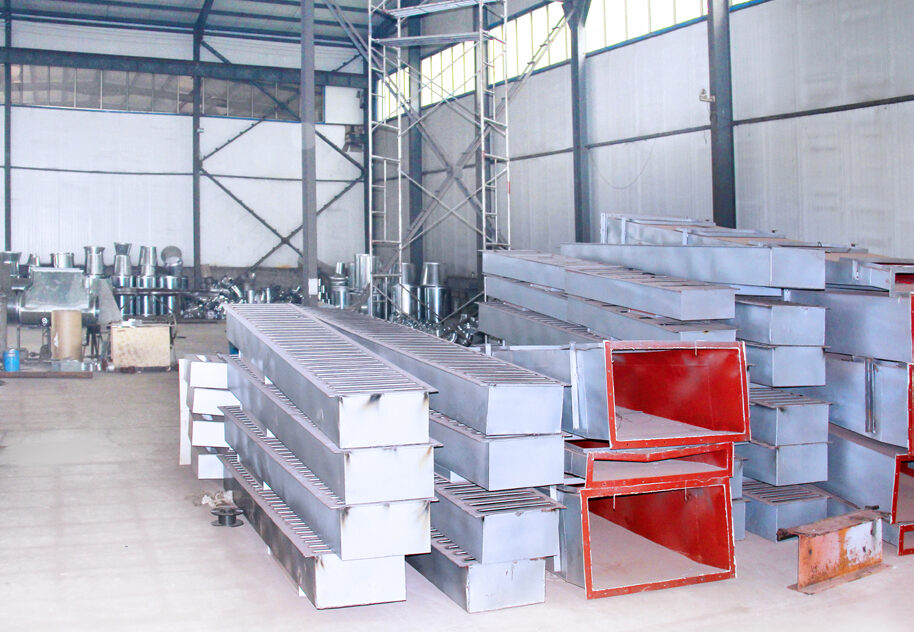

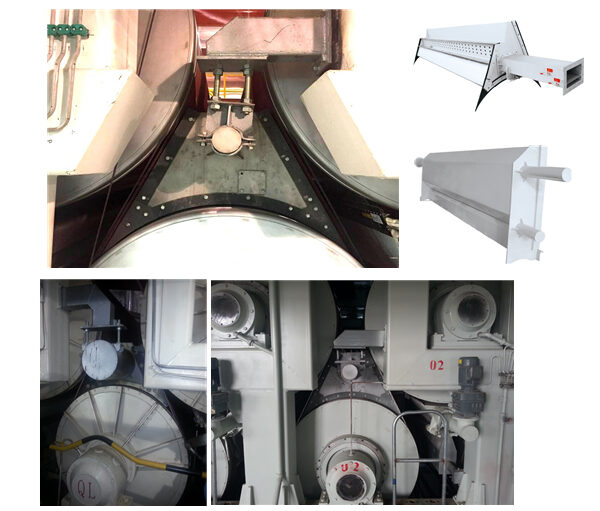

Blowing Box Series Products

PA type pocket blowing box

Very uniform at crossing,so that the uniformity of moisture in the pocket area,so as to maintain the horizontal dry paper.

PB type pocket blowing box

Blow to the pocket and reduce the humidity in the pocket.Stable sheet,make the paper smooth transfer to the next cylinder.

PC type pocket blowing box

Coordinate with the vacuum box,and balance the air in the area.

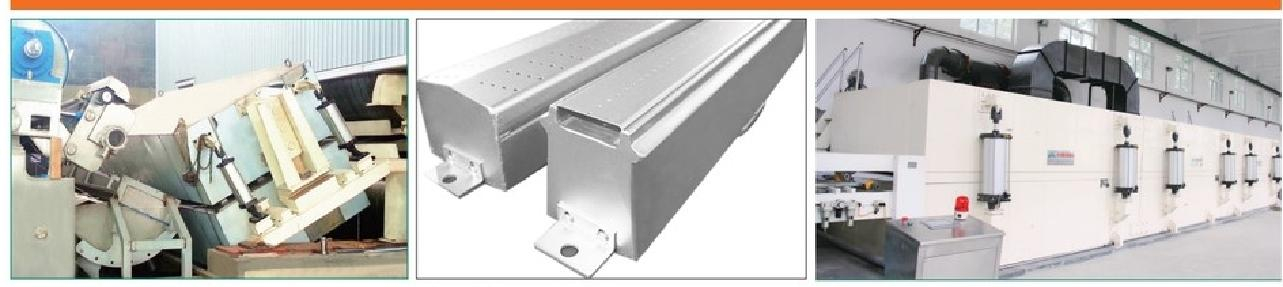

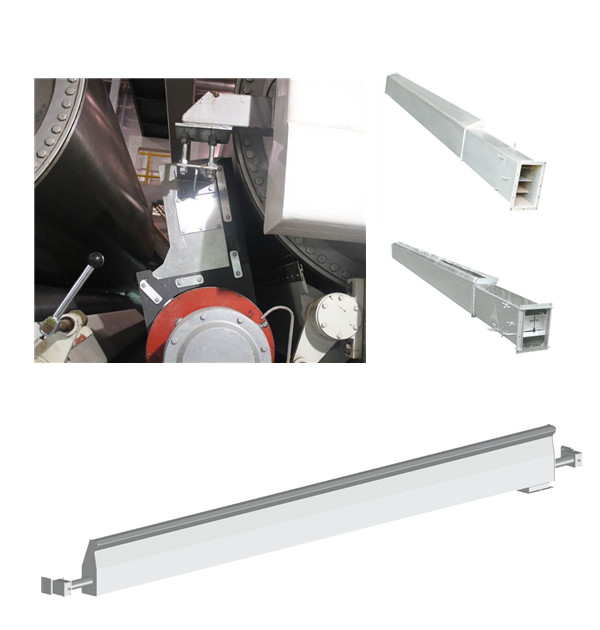

Stabilizer Unit

PV vacuum stabilize box

Used for UNOcylinder or VAC cylinder,the use of suction negative pressure,work stability,low energy
consumption,can be equipped with automatic Carrier rope paper area.

PA stabilize box

For UNO or VAC cylinder,the perfect embodiment of the Coanda effect,running at lower speed paper machine,the
energy consumption is relatively higher.

PP transfer vacuum box

For a web rom the press transfer to the dryer section,can be equipped with automatic Carrier rope paper area.

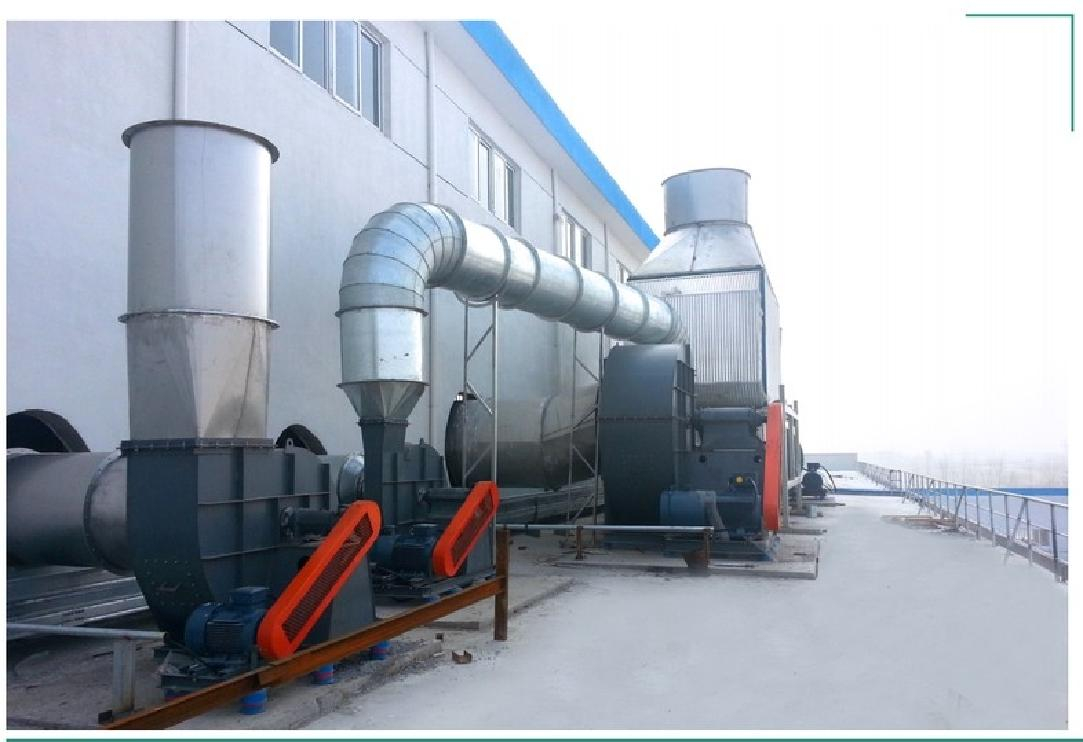

Heat Recovery Unit

● The tubular structure,stable performance and durable

● New type patent oval heat pipe with high effciency and less floor space

● Save energy

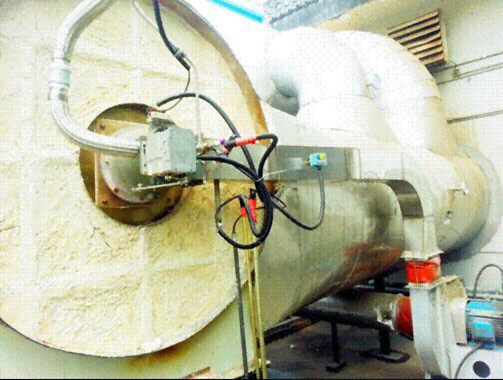

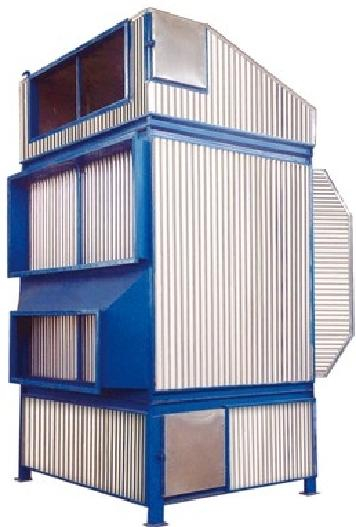

Elliptic heat transfer tube bundle device

Automatic cleaning device

Fresh air with filter net,and with the plug alarm

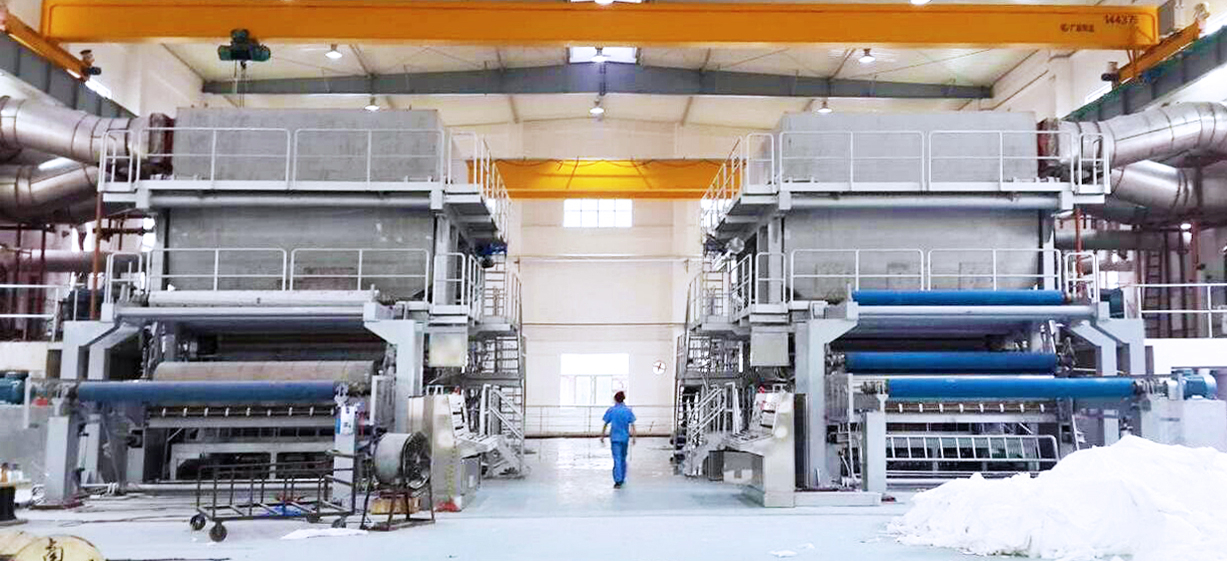

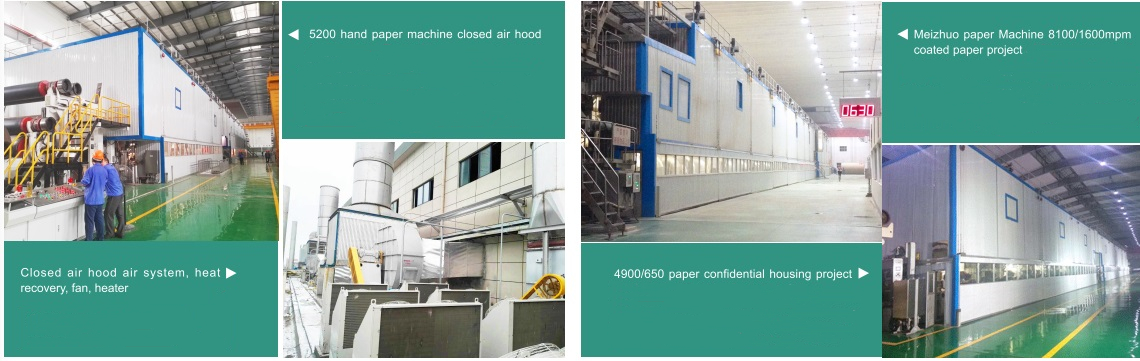

Closed Hood System

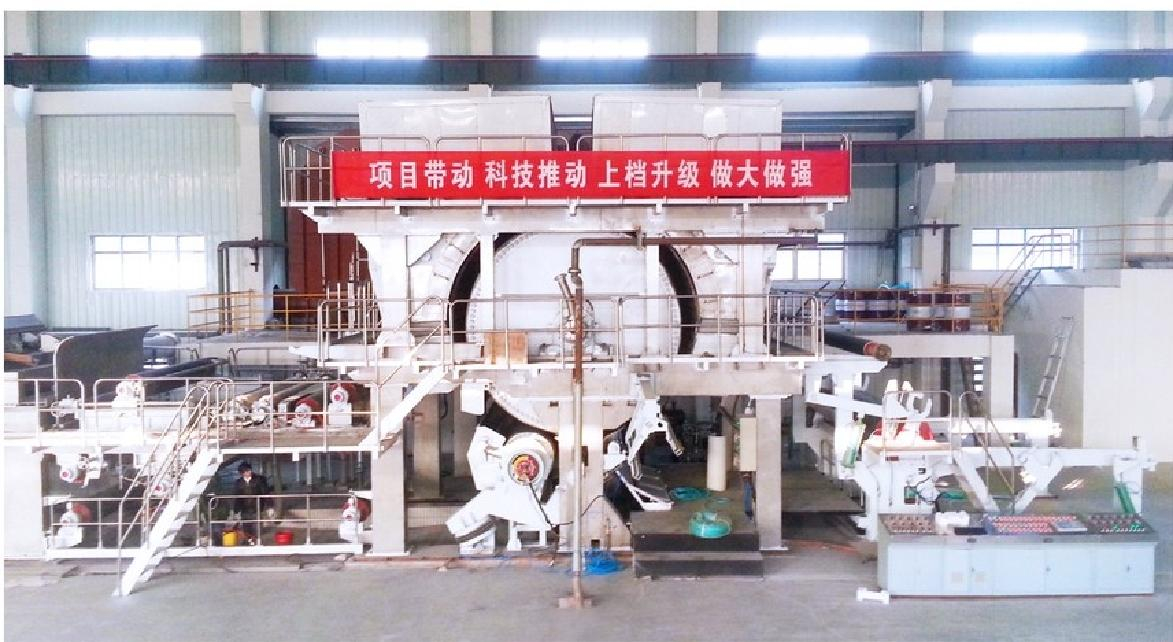

High-speed Yankee hood is BANNOR to digest absorb the leading-edge technology,comprehensive domestic existing laege dryer in actual production,research anf development of a new generation of products,using the contact and convective heat transfer,and thermal wind blow perpendicular to the paper,interface of the air film is damaged with reduced thickness,so that heat and mass transfer coefficient greatly increase in paper machine production and drying efficiency and reduce the consumption of steam.

According to the different types of paper,the Yankee Hood is divided into three kinds of specifications,such as orifice plate,slit type or hole slats.
