(paper making)HIGH CONCENTRATION BREAKING SYSTEM
WORKING PRINCIPLE(paper making)

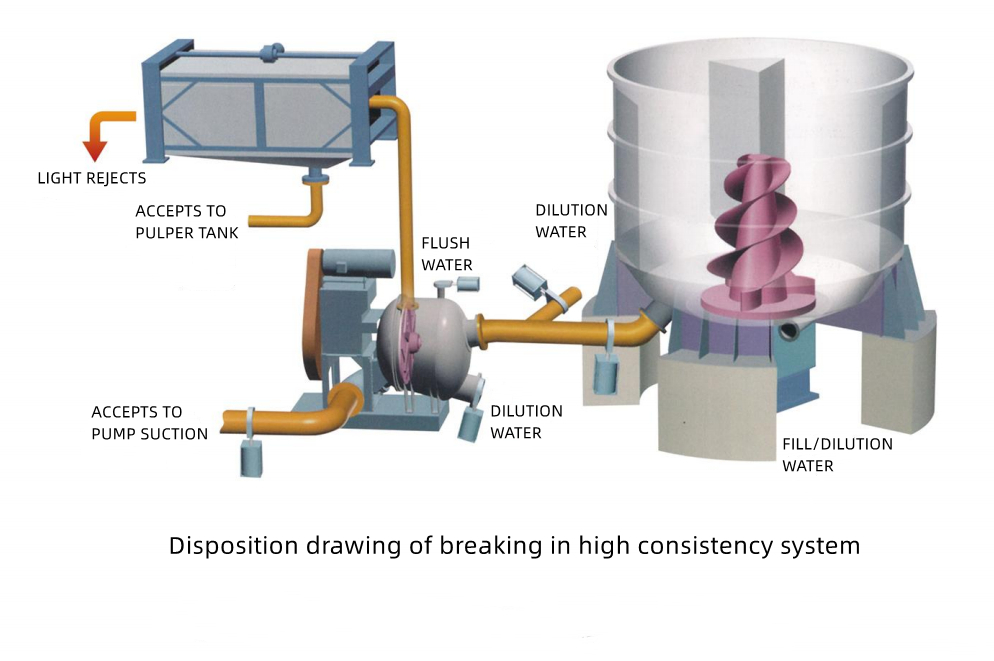

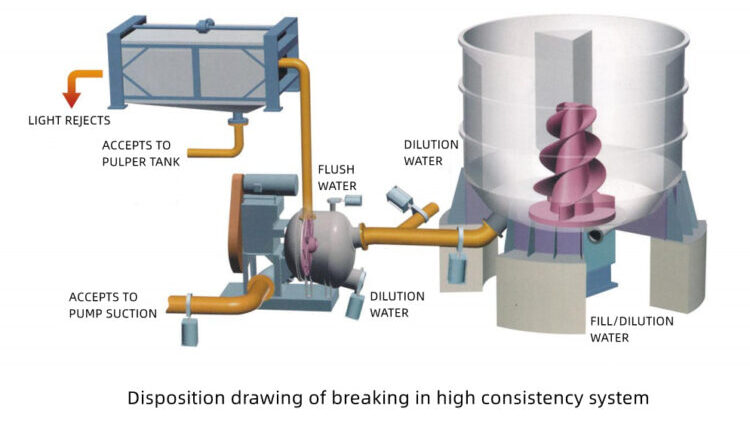

(paper making)The system consists of high concentration hydraulic pulper,rough separator,round simple screen and PLC control system.
The slurry after high concentration pulper is diluted to 5% into the coarse separator,pulp and impurities in the coarse separator are further separated,fine pulp through the sieve plate into the next process,arrested the set of coarse impurities into the cylinder screen,cylinder screen to remove impurities.(paper making)
The combined application of the three equipment of the system can keep the cleaning of the tank body of the high concentration pulp machine,overcome the shortcomings of long crushing time,low fiber strength,and fine crushing of debris,realize the best dispersion and ink peeling effect under the high concentration state,shorten the crushing cycle step by step,and improve the processing capacity of the crushing system.

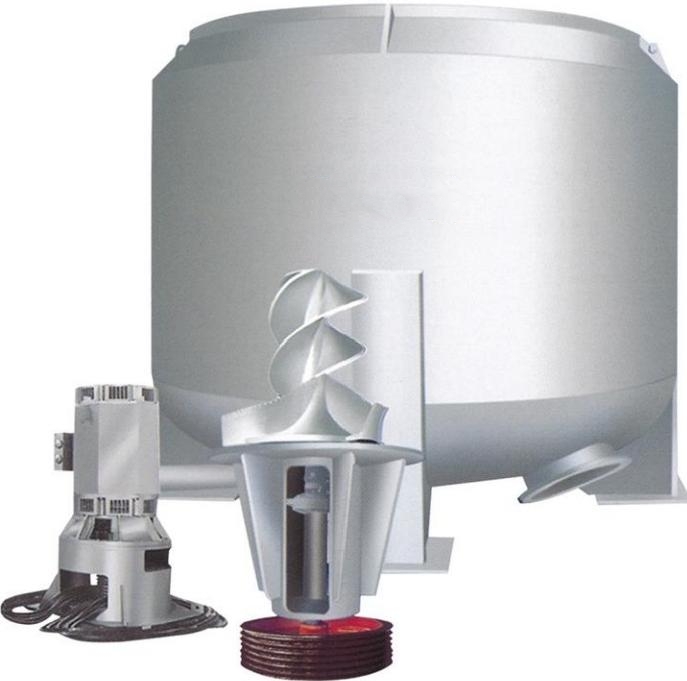

HIGH CONCENTRATION HYDRAPULPER
Application
Used for shredding waste paper in high concentration in deinking process.
Construction features
Compact structure,high rotation efficiency.
(paper making)Three-wire spiral tower rotor,can effectively promote the circulation of the slurry,enhance the friction between the slurry fibers,can achieve a high concentration of mild beating, dreach the fiber without breaking impurities.
Specifications:5m³~50m³
Processing capacity:20~360TPD

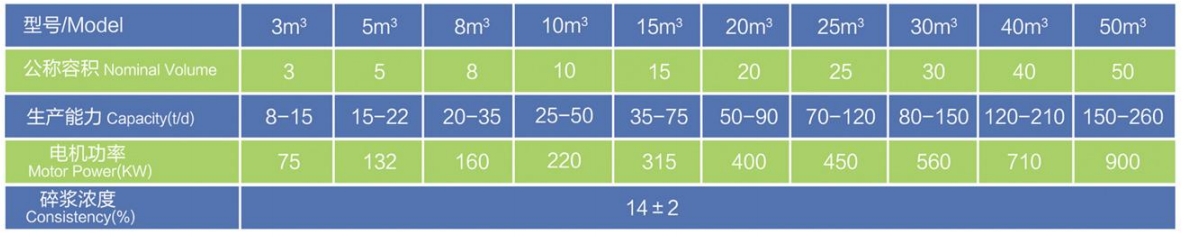

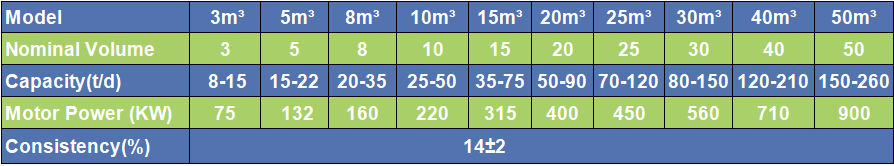

Main technical data

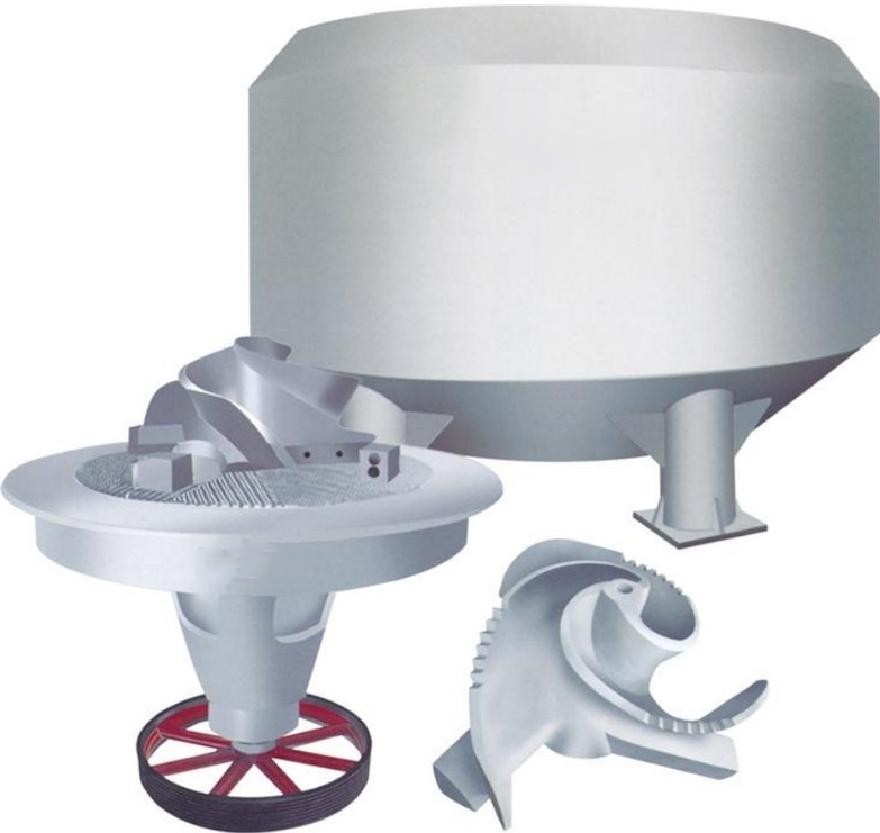

MIDDLE CONSISTENCY HYDRAPULPER (WET STRENGTH PAPER)
Application
Equipment cyclotron knife and fixed knife are made of special alloy steel,the material is particularly wear-resistant.The bottom cutter adopts turbulent flow design to improve the dissociation ability.
Cyclotron knife with high reflux tricycle design,suitable for various types of pulp board,waste paper.
Intermittent operation,especially suitable for high wet strengthwaste paper.(paper making)

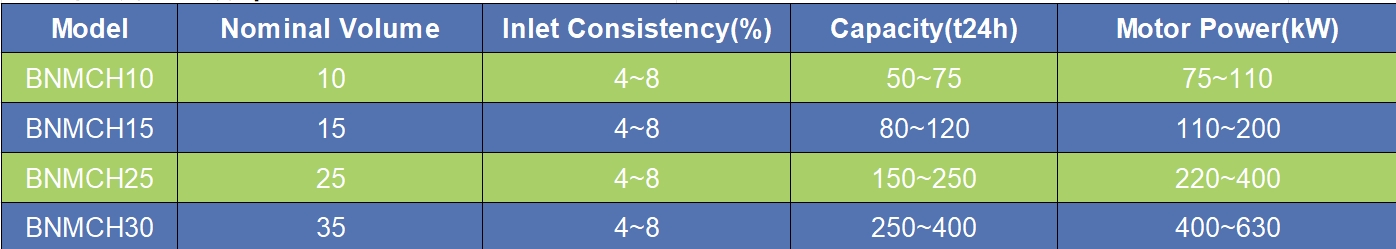

Main technical data

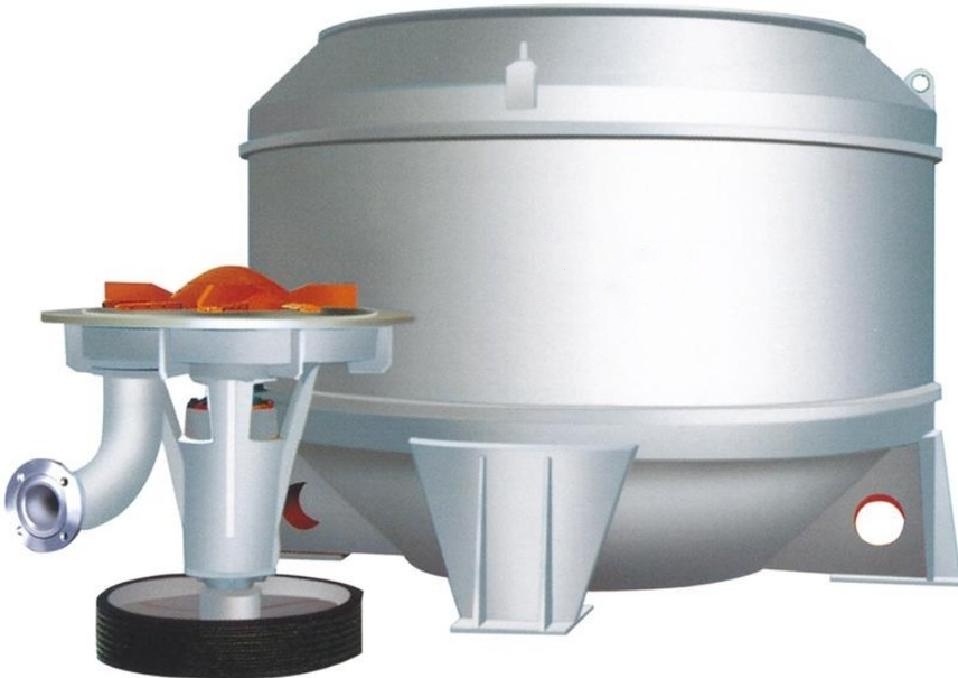

O TYPE HYDRAPULPER
Application
Used for shredding pulp board,paper machine and all kinds of waste paper.(paper making)
Construction features
According to the different raw materials,adopt the corresponding operation mode,wide range of use.
Specification:2m³~70m³
Processing capacity:15~600TPD
