Water-Jet Turn-up System

Water-Jet Turn-up System

Paper TecI  (Water-Jet Turn-up System)

improve roll changing efficiency
reduce paper loss
increase capacity  ( Water-Jet Turn-up System )

Features and Benefits

As paper machine speeds continue to increase, automatic roll changing becomes increasingly important.

However, increased speeds make roll changing increasingly difficult. Therefore, selecting a device capable of automatic roll changing is crucial.

        ① Fully automatic roll changing maximizes worker safety and prevents injuries.
        ② The paper web is transferred from a full roll to a new roll in a very short time, with virtually no waste paper, thereby increasing production capacity.

        ③ The roll change success rate is extremely high, approaching 100% (>99.5%).
        ④ The paper web is perfectly flat when transferred to the new roll, with no wrinkles on the roll bottom, thus avoiding wrinkles and excess waste paper.

        ⑤ Fully automatic equipment is very easy to operate.
        ⑥ The paper yield rate is increased by 0.5%-3%, providing a one-time return on investment.

        ⑦ Applicable paper machines: corrugated paper, kraft paper, cardboard, white board, white cardboard, newsprint, cultural paper, household paper, etc.

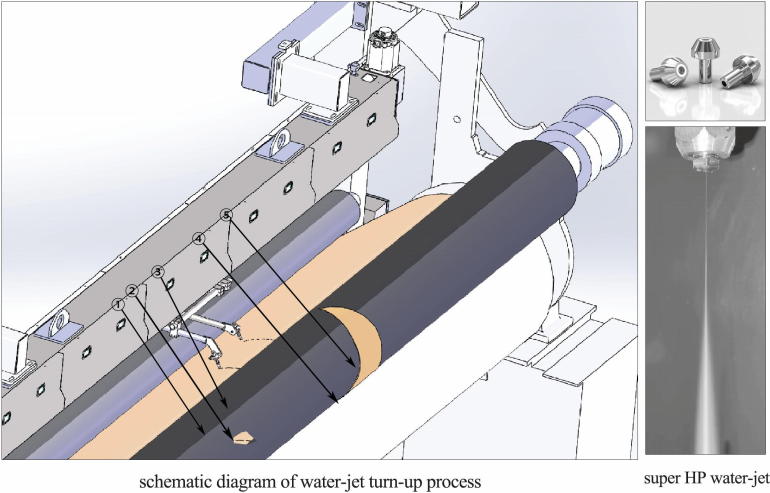

Working Principle

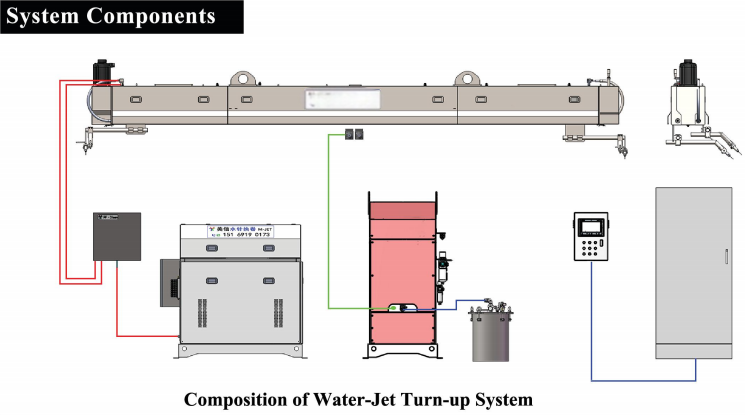

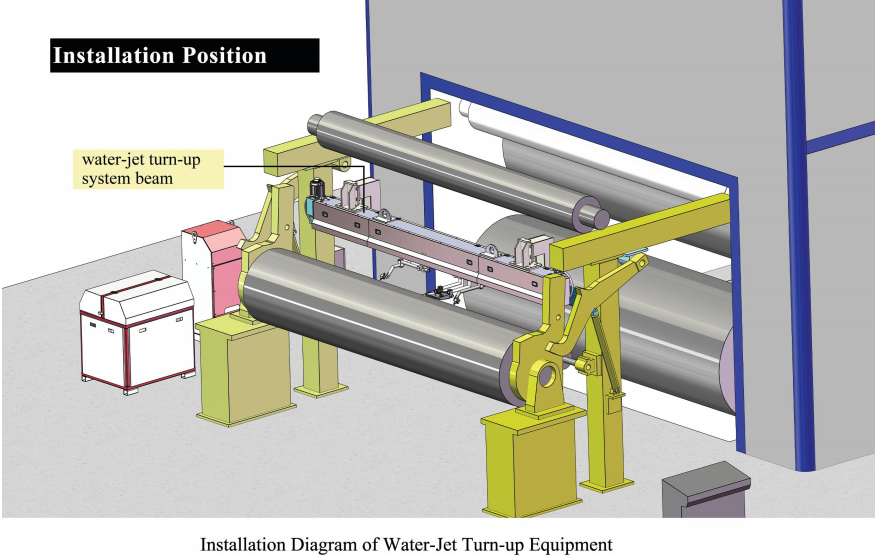

The high-pressure water jet flanging system’s water jet beam is installed above the paper machine.

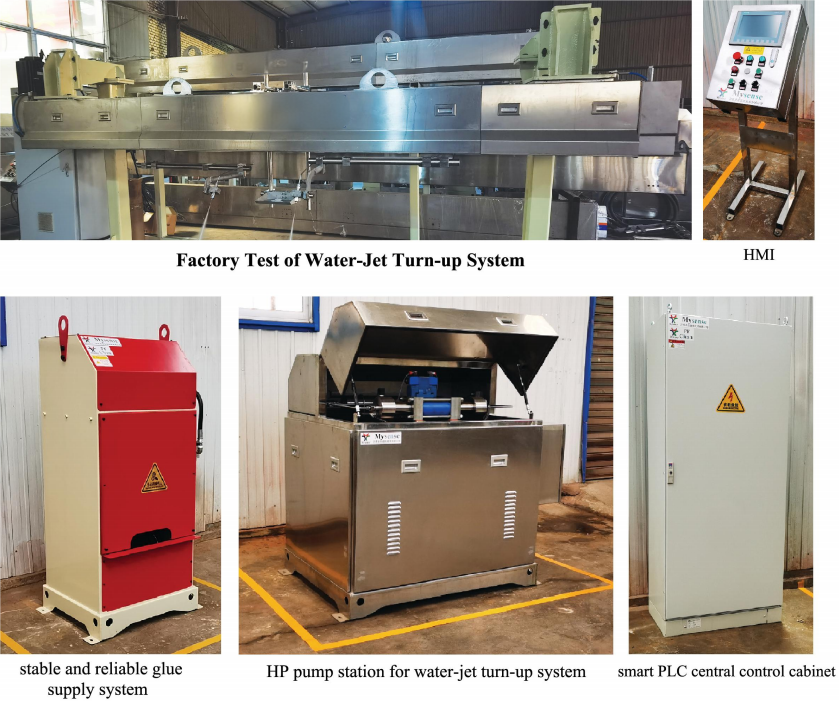

An ultra-high-pressure water generation system generates high-pressure water, which is then sprayed by ultra-high-pressure nozzles to produce high-quality paper edges.

The water jet beam, equipped with two sets of paper edges, cuts the paper edges at high speed while simultaneously spraying an appropriate amount of glue onto the edges.

This glue adheres to the edges as they pass through the new paper roll, widening the entire paper web and ensuring high-quality roll changes.
